Tree Problems

Table of Contents

Binary Tree Problems

Practice Score

Emoji Meaning
👏 # of times practiced
😎 Ten claps in a row

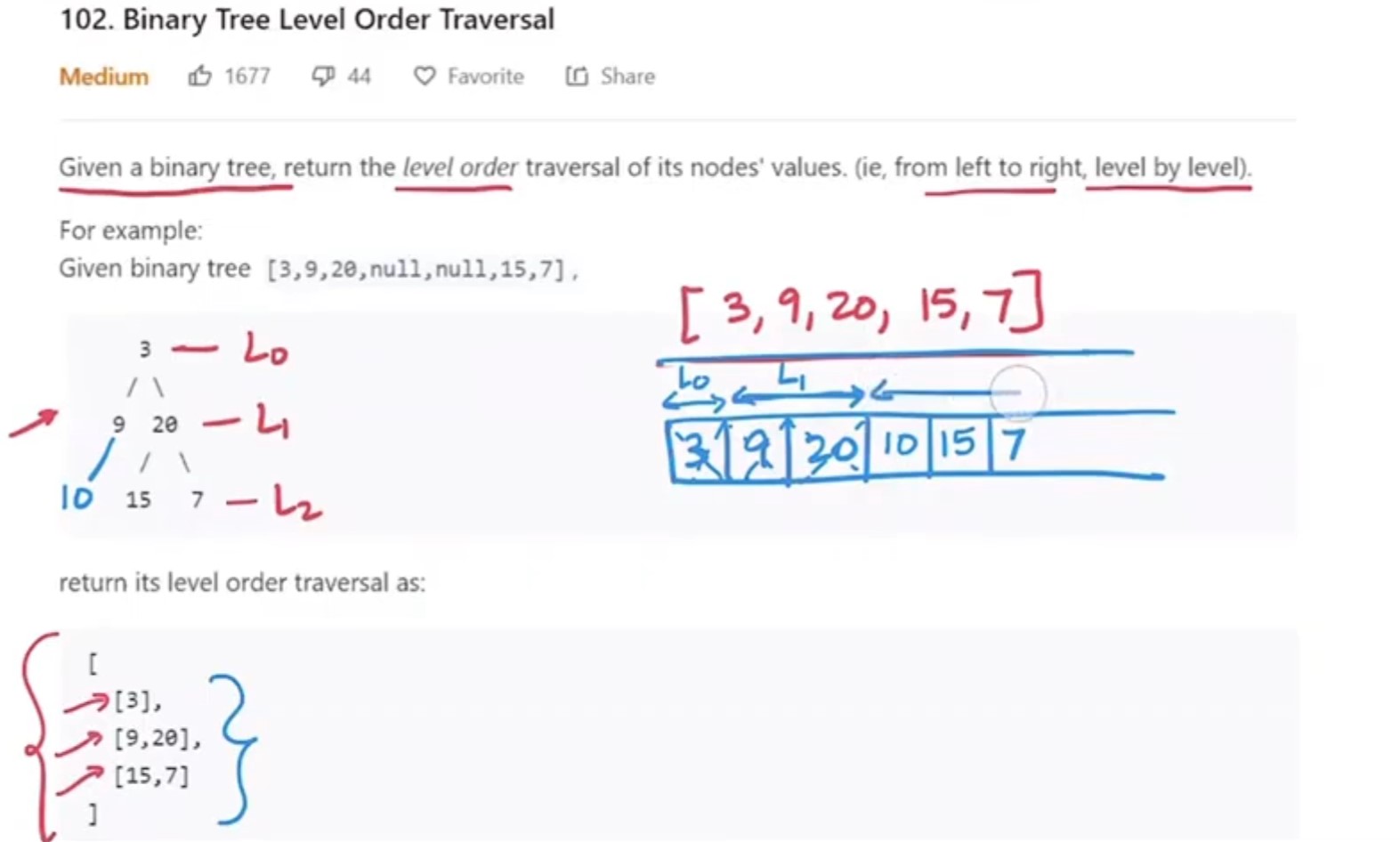

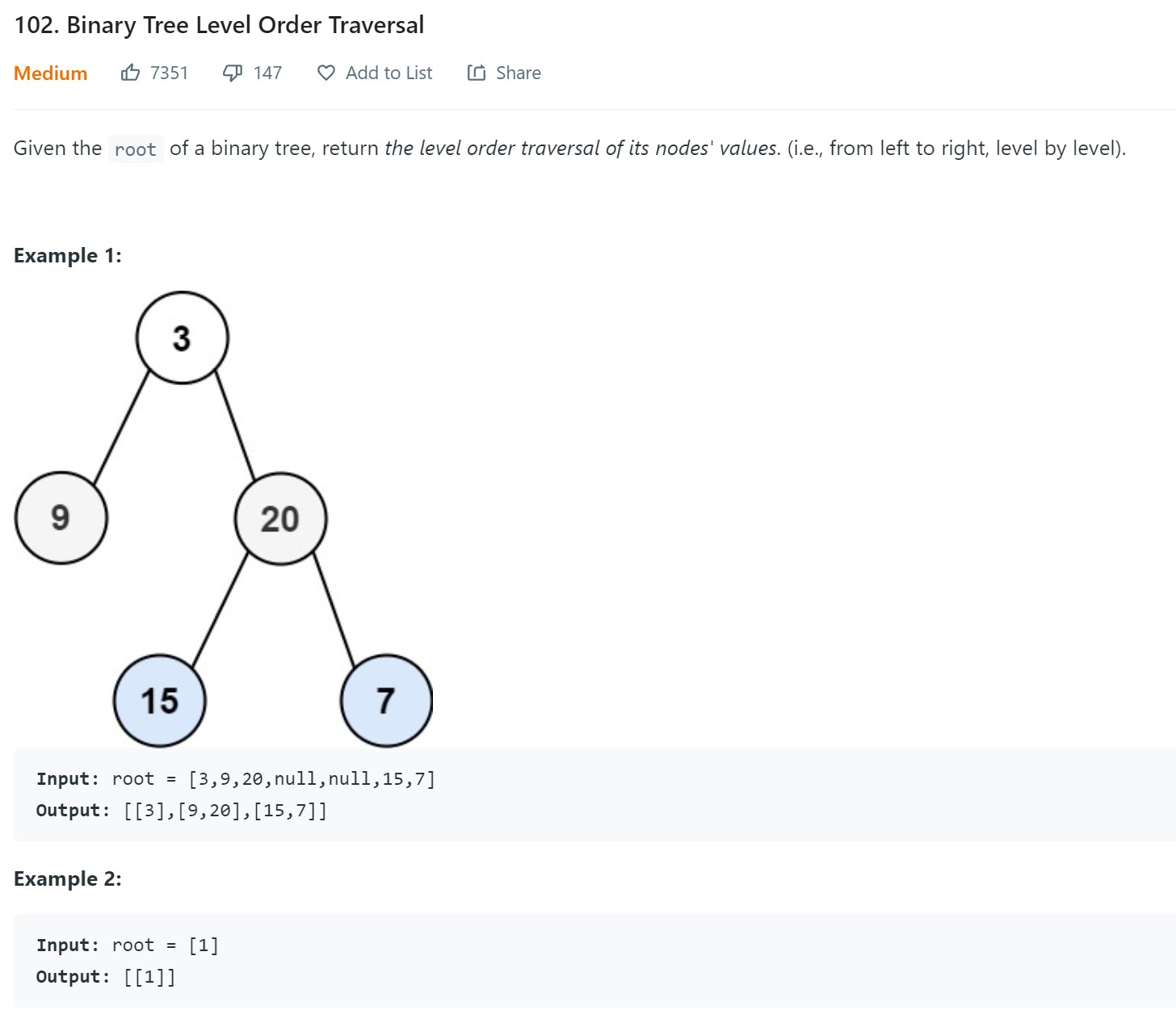

1. Binary Tree Level Order Traversal - LC 102 - Medium 👏👏👏👏👏👏👏👏👏👏

Video Reference":“Alternative Class -Trees With Omkar: 14:06 hour

  • Code

    • The tricky part of this question is to group the output at each level as inner list. This means we need a way to know which ones belong to each level.
    • We could keep track of this using a hash table, or another queue. The approach in this solution is to take a snapshot of the queue at each level and add the entries to a sublist which is then appended to the global list.

     # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def levelOrder(self, root: Optional[TreeNode]) -> List[List[int]]:

      if root is None:
	  return []
      result = []
      q = collections.deque([root])
      # When I tried while q is not None: leetcode gave me error memory exceeded.
	# Looks like we need to check explicitly for len != 0. IMPORTANT!!!
      while len(q) != 0:
	  numnodes = len(q)
	  temp = []
	  for _ in range(numnodes):
	      node = q.popleft()
	      temp.append(node.val)
	      if node.left is not None:
		  q.append(node.left)
	      if node.right is not None:
		  q.append(node.right)

	  result.append(temp)
      return result

  • Points to Note

    -   With mutable approach, leaf level always does the cloning, so focus
    on them for total compelxity.  internal worker only adds to the
    slate...so contstant amortized time

-   In a complete binary tree, the number of leaf nodes is equal to the
    number of internal nodes excluding the 1. 50% of nodes are leaf
    nodes.

-   Do not check for `while q is not None:`. Leetcode gave the error
    memory exceeded. Explicitly check for `len(q) !=0`

-   When root is added to dequeue, add it as list. `[root]`. Otherwise
    LC gives error

  • Complexity Analysis

    • In tree problems even though we see loop within a loop, the inner loop can many times do only constant work. In this problem, the total time and space complexity is O(N) even though it may appear that we have loop within a loop. The inner loop is doing constant work of push and pop and the outer loop goes through all the nodes which is O(N).

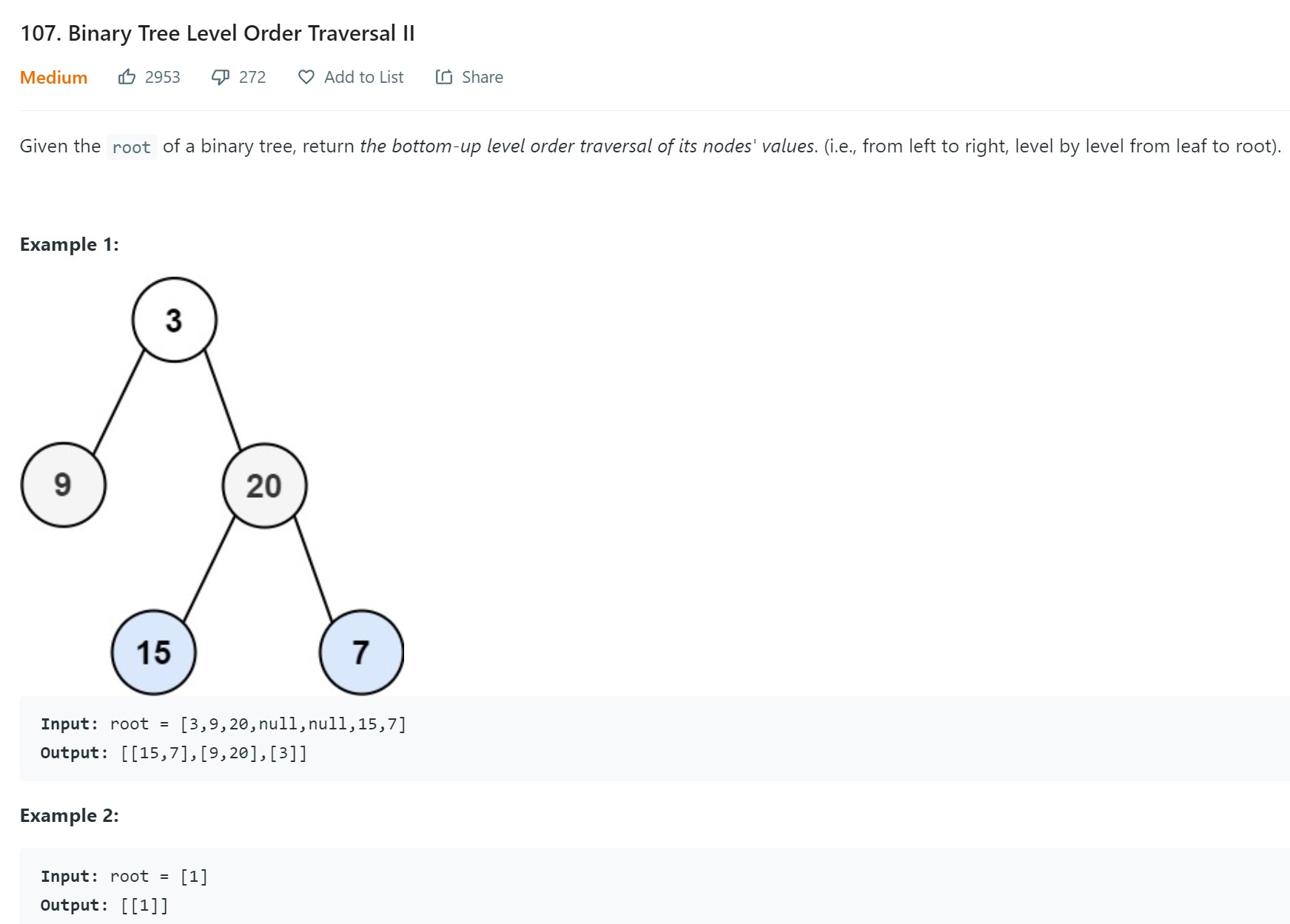

2. Binary Tree Level order traversal II - LC 107 - Medium

  • Video Reference: “Alternative Class -Trees With Omkar: 1:02:20 hours”,

  • Code

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def levelOrderBottom(self, root: Optional[TreeNode]) -> List[List[int]]:
	if root is None:
	    return []

	q = deque([root])
	result = []
	while len(q):
	    temp = []
	    numnodes = len(q)
	    for _ in range(numnodes):
		node = q.popleft()
		temp.append(node.val)
		if node.left is not None:
		    q.append(node.left)
		if node.right is not None:
		    q.append(node.right)

	    result.append(temp)

	result.reverse()
	return result

  • Points to Note

    • It is very important to know where to call the reverse() function.

      • if temp.reverse() is called, then it reverses the elements within each list
      • if result.reverse() is called right after result.append(temp), then it reverses in between lists
      • result.reverse() should be called right after the outmost loop just before the return statement.

    • We could use a stack to store it and pop the results out at the end to reverse the list

    • We could use a two sided dequeue

    • Could we insert into an array from the left instead of right? This may not be a constant time operation so we may have to use a linked list.

    • The simplest approach could be just to reverse the list at the end. This reverses the outer sub lists but not the elements within the list. The elements are still from left to right but the levels are from bottom to top.

  • Complexity

    • There is no change to the complexity. The reverse operation is also of O(N) time.

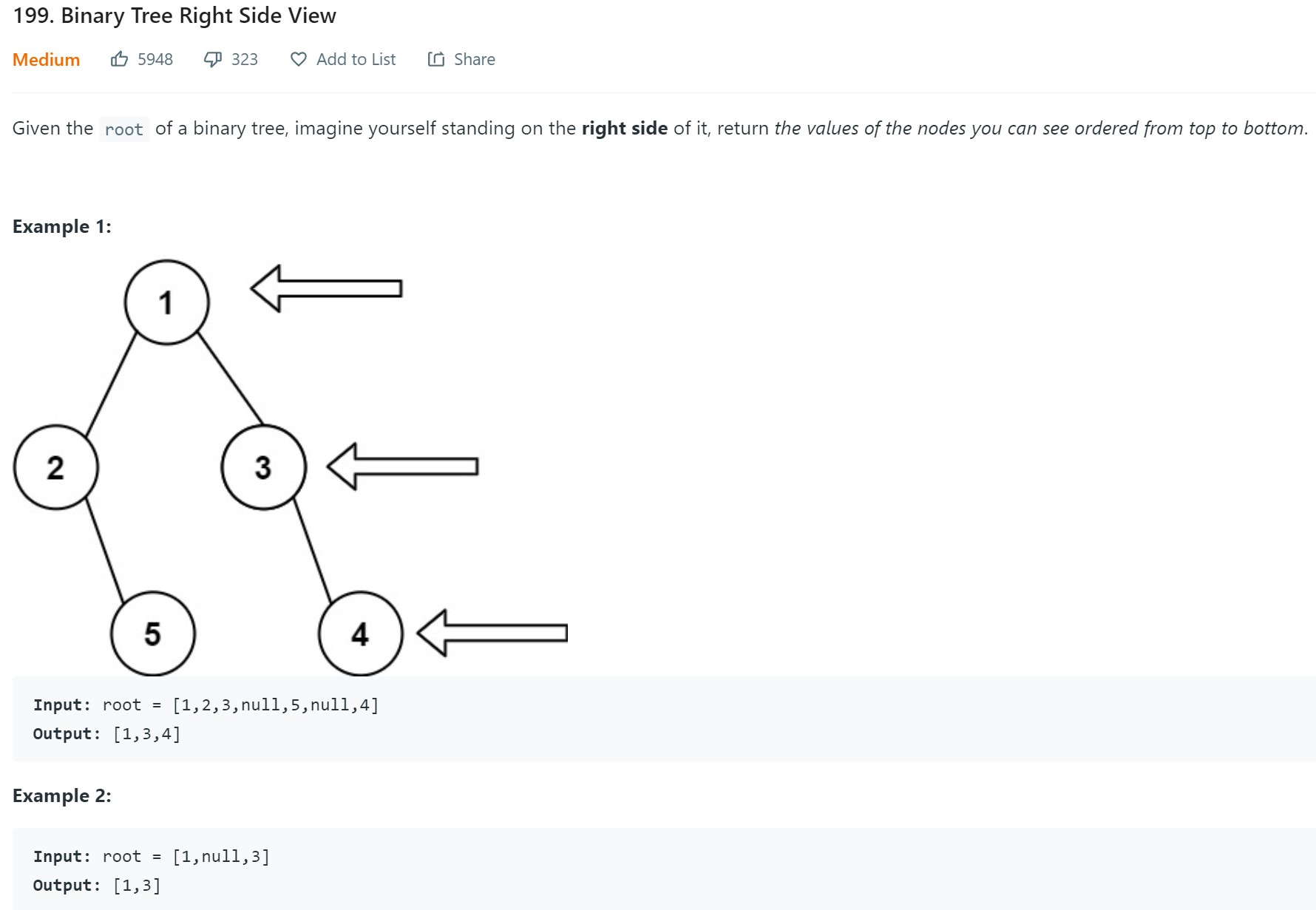

3. Binary Tree Right Side View - LC 199 - Medium

  • Code

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def rightSideView(self, root: Optional[TreeNode]) -> List[int]:
	if root is None:
	    return []

	result = []
	q = deque([root])

	while len(q):
	    numnodes = len(q)
	    for _ in range(numnodes):
		child = q.popleft()
		temp = child.val
		if child.left is not None:
		    q.append(child.left)
		if child.right is not None:
		    q.append(child.right)
	    result.append(temp)
	return result

  • Points to Note

    • We could use the same template and return temp[-1] to return the rightmost element. Or we could just rename temp as a variable and overwrite the values so that it holds the last value in each level which is the rightmost.

    • Why is the recursion tree is of size O(2^N.N) whereas we say here it is of O(N)? In the recursion class, the size of the input is small because all these have exponential time complexity with the input size and results in huge tree. The height is O(N) because at each level only one blank is filled. At leaf level the entire subset or permutation is created which is added to global result.

      The height is O(N) total number of nodes is exponential in N, because we have 2^N leaf nodes (even if branching factor is 2).

      In the trees problem, N is not the height of the tree, it is the total number of nodes in the tree.

  • Complexity

    • There is no change to the complexity. The reverse operation is als of O(N) time.

  • Coding Mistakes

    2022-02-28: 👏 😎 ❤️

    • No mistakes. Got it right first time in 02 minutes 43 seconds

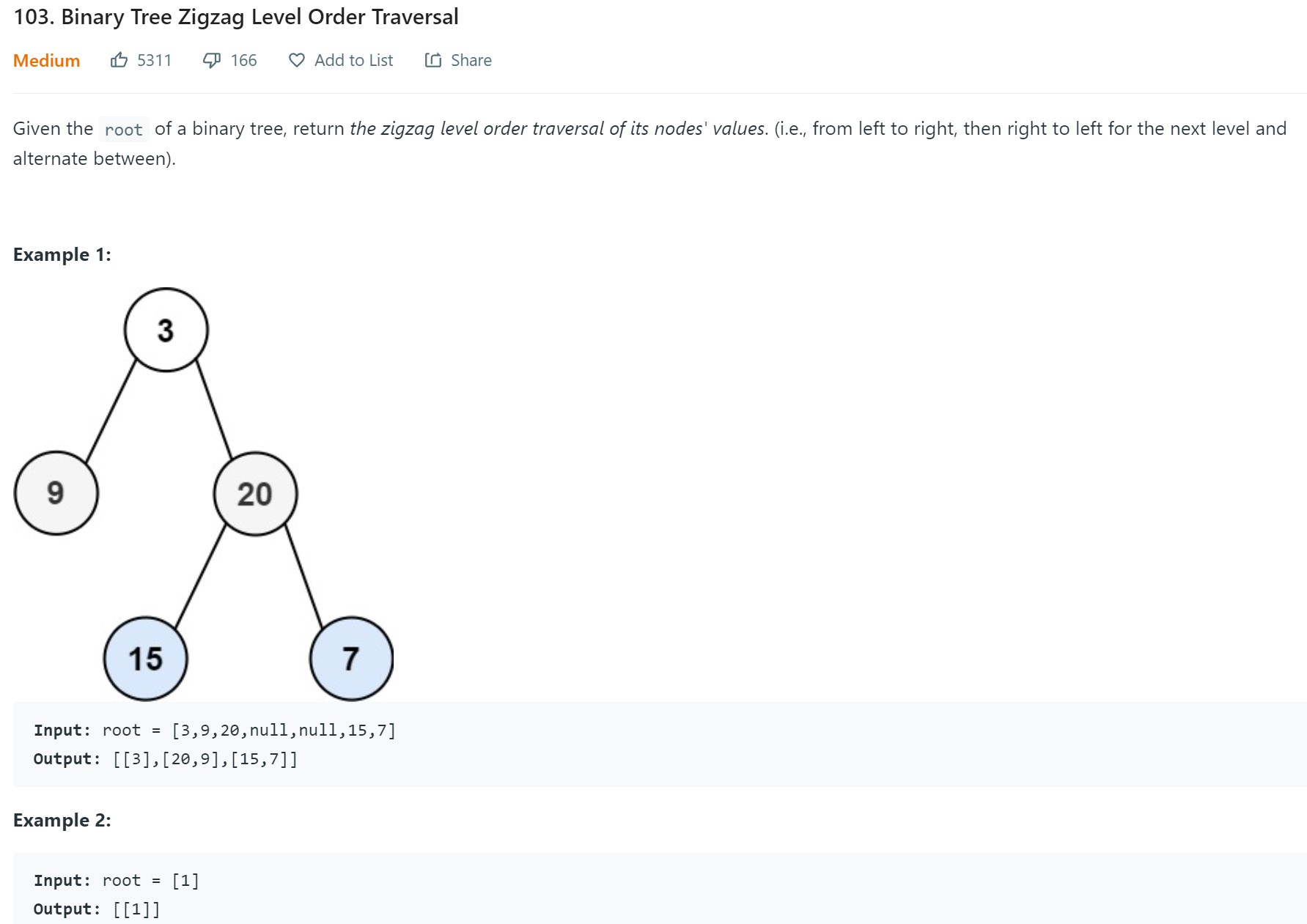

4. Binary Tree zig zag level order reversal - LC 103 - Medium

  • Code

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def zigzagLevelOrder(self, root: Optional[TreeNode]) -> List[List[int]]:
	if root is None:
	    return []

	q = deque([root])
	result = []
	right_to_left = False
	while len(q):
	    numnodes = len(q)
	    temp = []

	    for _ in range(numnodes):
		node = q.popleft()
		temp.append(node.val)
		if node.left is not None:
		    q.append(node.left)
		if node.right is not None:
		    q.append(node.right)
	    if right_to_left:
		temp.reverse()
	    right_to_left = not right_to_left
	    result.append(temp)
	return result

  • Points to Note

    • right_to_left = not right_to_left. The other way to write this is if right_to_left is True: right_to_left = False else: right_to_left = True

    • For trees and graphs, the complexity is mostly linear if BFS is used of O(N).

    • Complexity:

      • There is no change to the complexity. It is of O(N) time.

  • Coding Mistakes

    2022-02-28: 😟

    • The right_to_left flag used to track alternate zigzag order was initialized inside the first loop. It should have been initialized outside all the loops. The first loop (while len(q)) is used to gather all the nodes in the tree. The inner for _ in len(numnodes) is used to gather all the children. Since we need to reverse the order at every level, the flag should be outside the while loop and not outside the for loop.
    • Took 11 minutes 3 seconds.

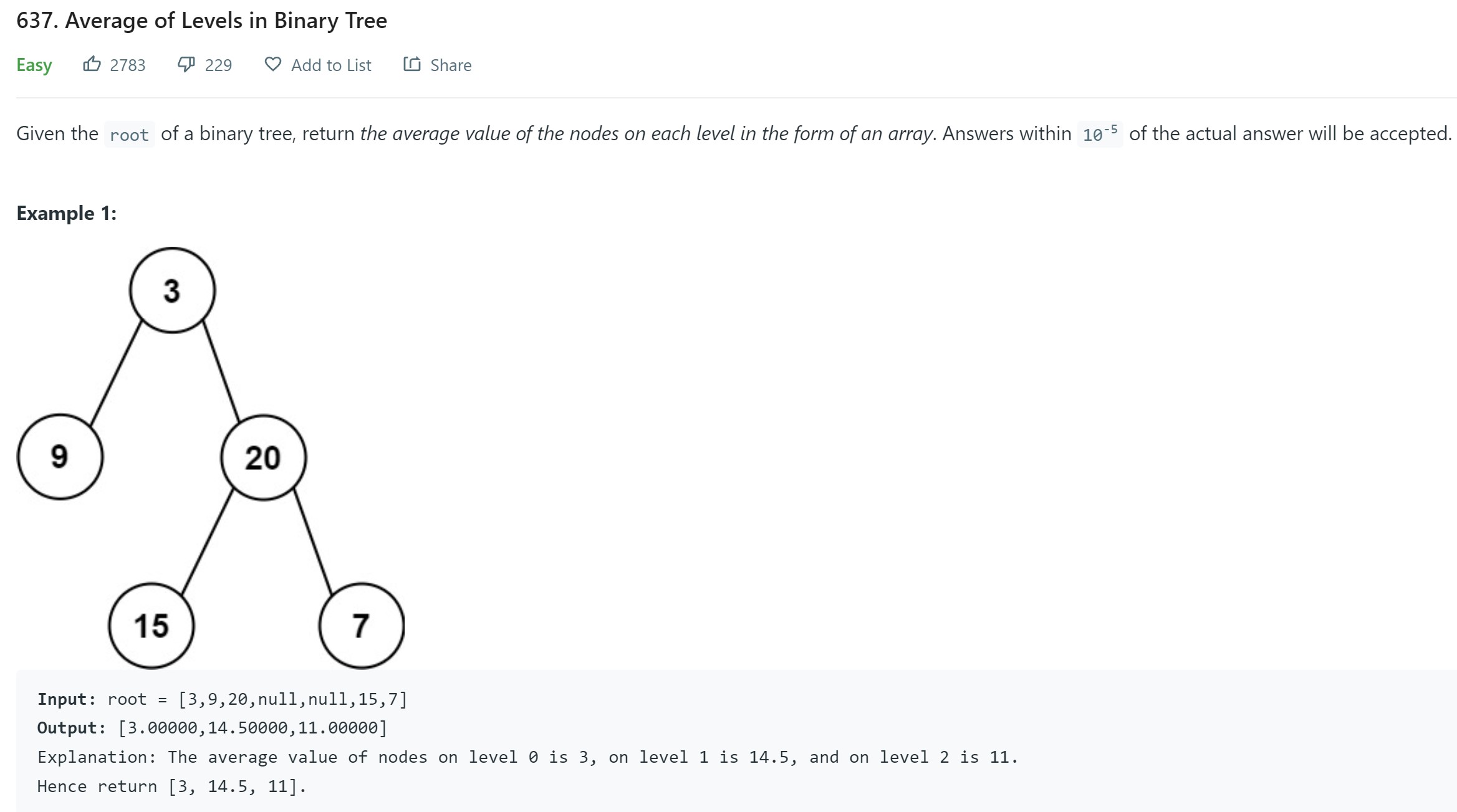

5. Average of levels in Binary Tree - LC 637 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def averageOfLevels(self, root: Optional[TreeNode]) -> List[float]:
	if root is None:
	    return []

	result = []

	q = deque([root])

	while len(q):
	    numnodes = len(q)
	    total = 0
	    for _ in range(numnodes):
		node = q.popleft()
		total += node.val
		if node.left is not None:
		    q.append(node.left)
		if node.right is not None:
		    q.append(node.right)
	    avg = total / numnodes
	    result.append(avg)
	return result
  • Complexity Analysis

  • Coding Mistakes

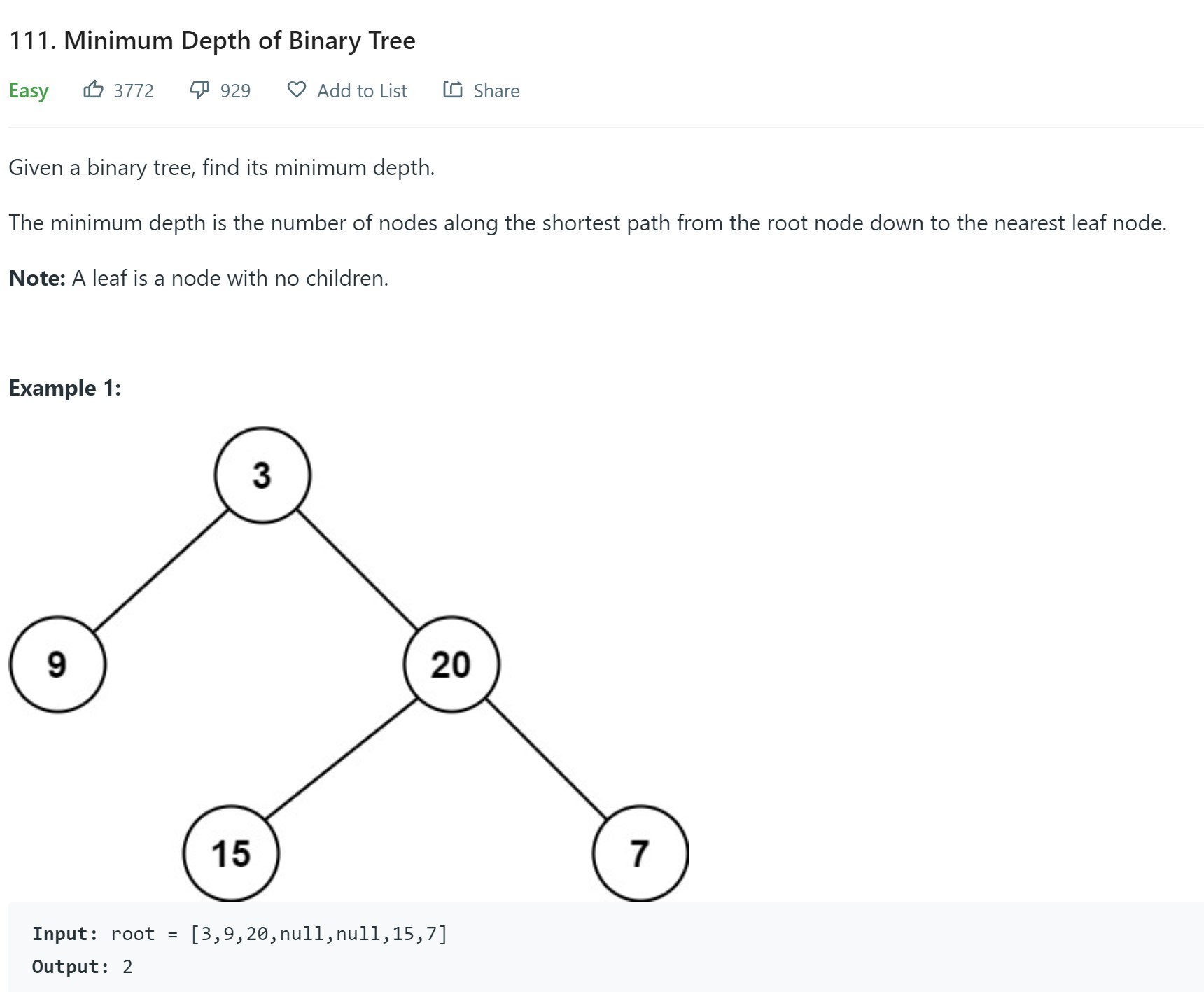

6. Minimum Depth of Binary Tree - LC 111 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def minDepth(self, root: Optional[TreeNode]) -> int:
	if root is None:
	    return 0

	min_depth = 0
	q = deque([root])

	while len(q):

	    numnodes = len(q)
	    min_depth += 1
	    for _ in range(numnodes):
		node = q.popleft()
		if node.left is None and node.right is None:
		    return min_depth
		if node.left is not None:
		    q.append(node.left)
		if node.right is not None:
		    q.append(node.right)
  • Complexity Analysis

  • Coding Mistakes

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

    class Solution:
    def minDepth(self, root: Optional[TreeNode]) -> int:
	if root is None:
	    return 0

	min_depth = 0
	q = deque([root])

	while len(q):

	    numnodes = len(q)
	    min_depth += 1  # 2022-02-28: The count is incremented outside the for loop ...not inside
	    for _ in range(numnodes):
		node = q.popleft()
		if node.left is None and node.right is None:
		    return min_depth
		if node.left is not None:
		    q.append(node.left)
		if node.right is not None:
		    q.append(node.right)

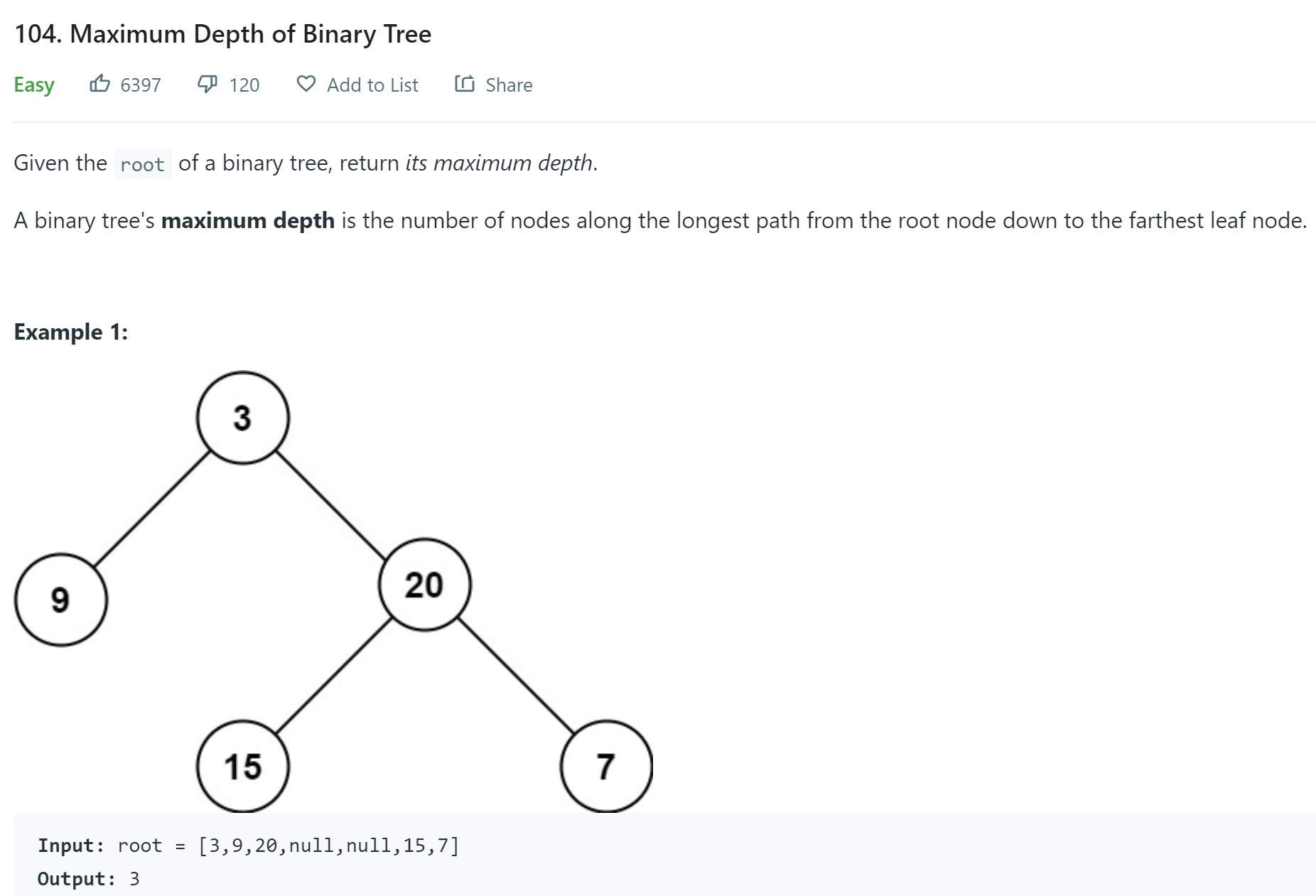

7. Maximum Depth of Binary Tree - LC 104 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def maxDepth(self, root: Optional[TreeNode]) -> int:
	if root is None:
	    return 0

	q = deque([root])
	maxdepth = 0
	while len(q):
	    numnodes = len(q)
	    maxdepth += 1
	    for _ in range(numnodes):
		node = q.popleft()
		if node.left is not None:
		    q.append(node.left)
		if node.right is not None:
		    q.append(node.right)
	return maxdepth
  • Complexity Analysis

  • Coding Mistakes

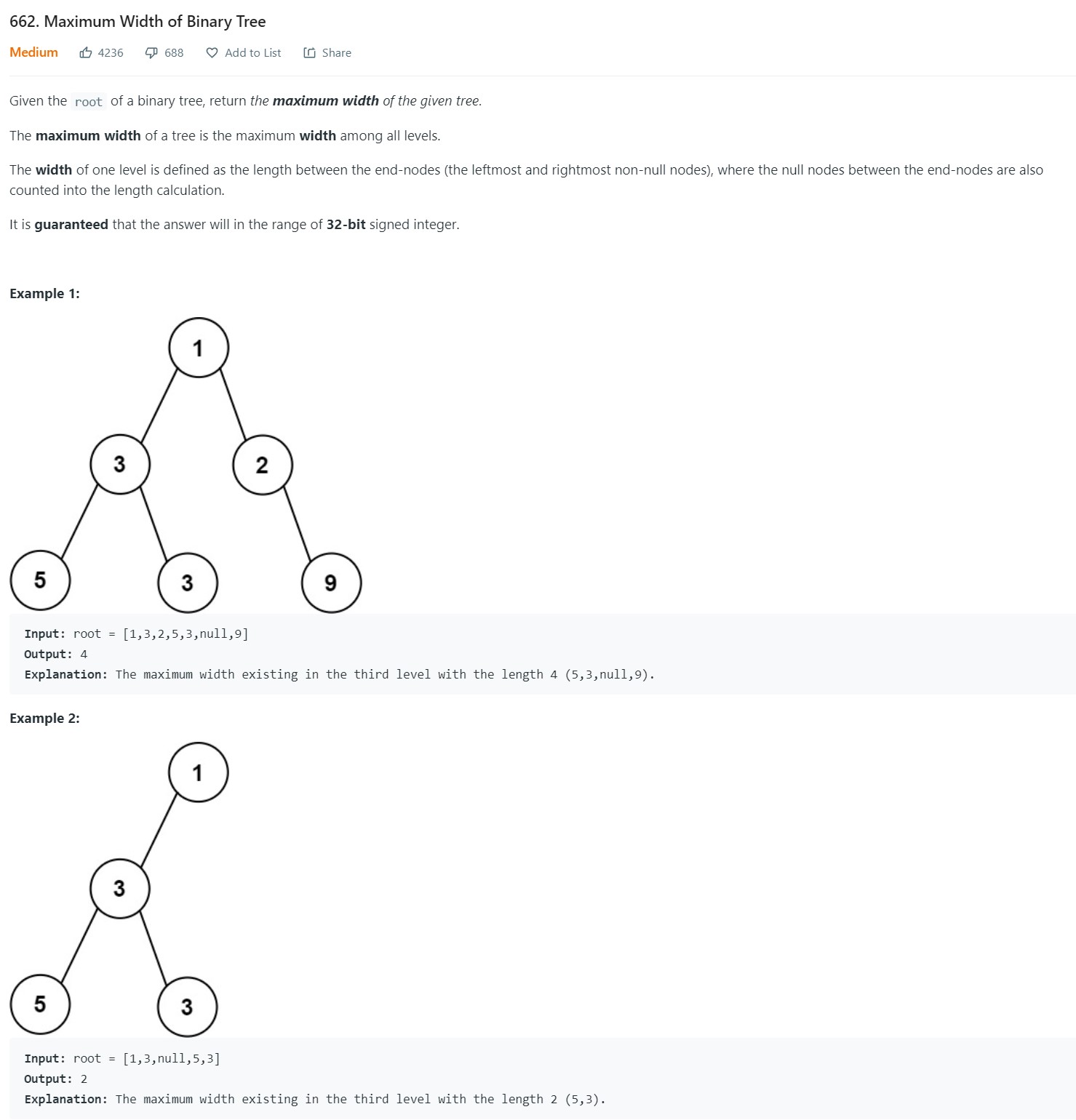

8. Maximum width of a Binary Tree - LC 662 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def widthOfBinaryTree(self, root: Optional[TreeNode]) -> int:
	if root is None:
	    return 0
	q = deque([(root, 1)])
	maxwidth = 0
	while len(q):
	    numnodes = len(q)
	    first = last = None
	    for _ in range(numnodes):
		(node, id) = q.popleft()
		if node.left is not None:
		    q.append((node.left, 2*id))
		if node.right is not None:
		    q.append((node.right, 2*id+1))
		last = id
		if first is None:
		    first = id
		maxwidth = max(maxwidth, last-first+1)
	return maxwidth
  • Complexity Analysis

  • Coding Mistakes

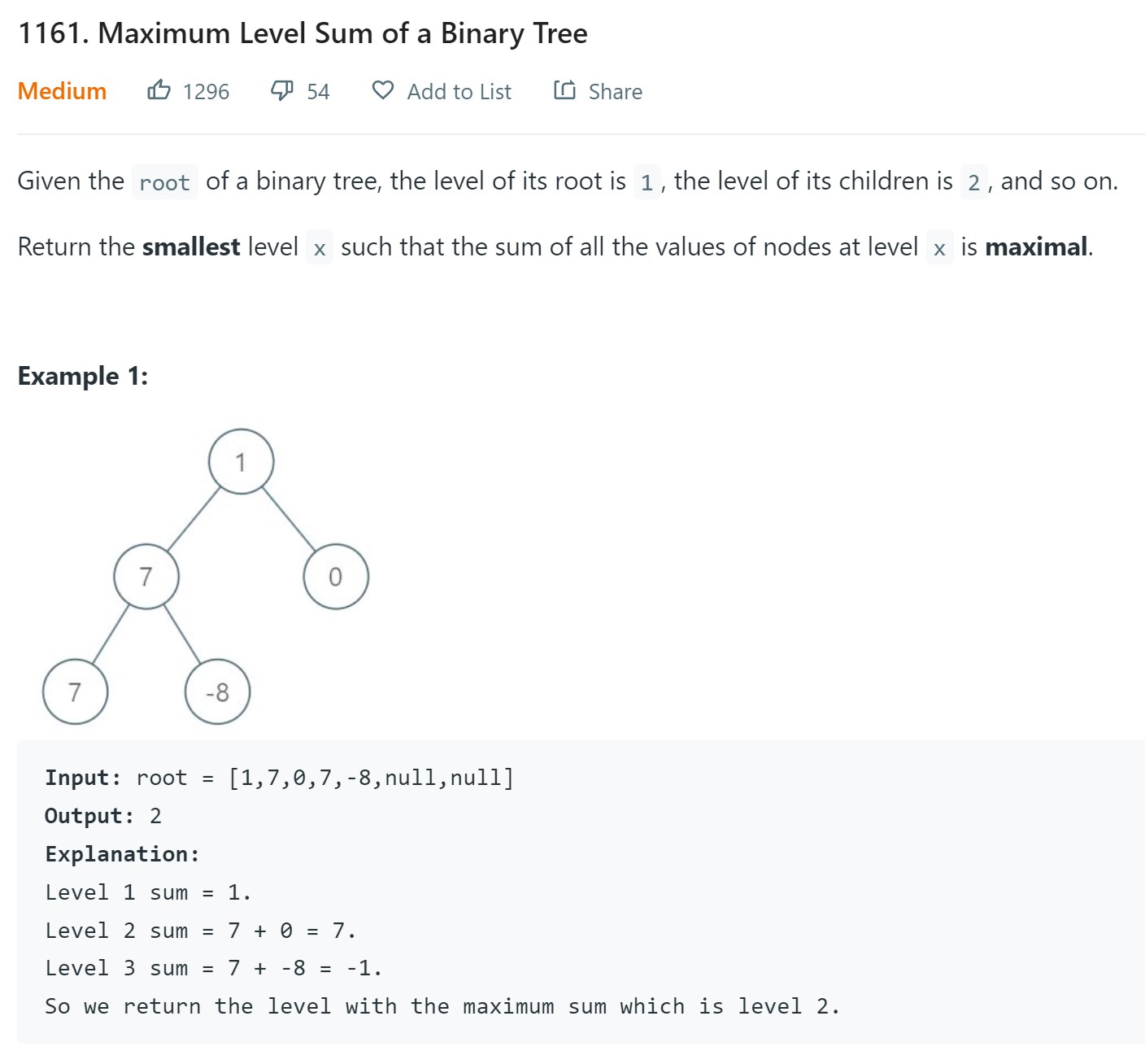

9. Maximum Level sum of a Binary Tree - LC 1161 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def maxLevelSum(self, root: Optional[TreeNode]) -> int:
	if root is None:
	    return 0

	sum = float(-inf)
	min_level = 0
	level = 0
	q = deque([root])
	while len(q):
	    numnodes = len(q)
	    total = 0
	    level += 1
	    for _ in range(numnodes):
		node = q.popleft()
		total  += node.val
		if node.left is not None:
		    q.append(node.left)
		if node.right is not None:
		    q.append(node.right)
	    if sum < total:
	       sum = total
	       min_level = level
	return min_level
  • Complexity Analysis

  • Coding Mistakes

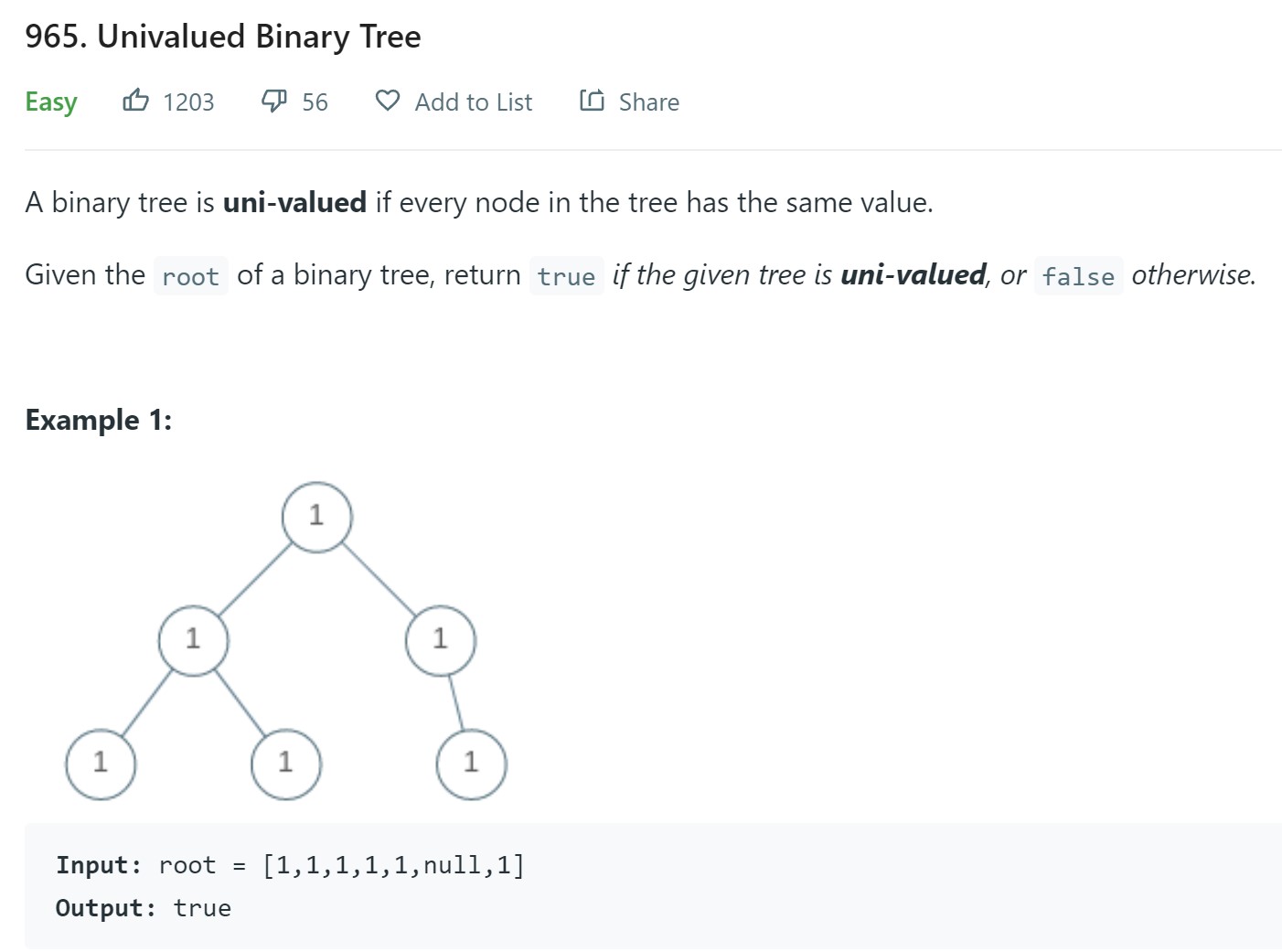

10. Univalued Binary Tree - LC 965 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isUnivalTree(self, root: Optional[TreeNode]) -> bool:
	if root is None:
	    return False
	q = deque([root])
	while len(q):
	    node = q.popleft()
	    if node.left is not None and node.right is not None:
		if node.left.val != node.right.val:
		    return False
		if node.left.val != node.val:
		    return False
	    if node.left is not None:
		q.append(node.left)
		if node.left.val != node.val:
		    return False
	    if node.right is not None:
		q.append(node.right)
		if node.right.val != node.val:
		    return False

	return True
  • Complexity Analysis

  • Coding Mistakes

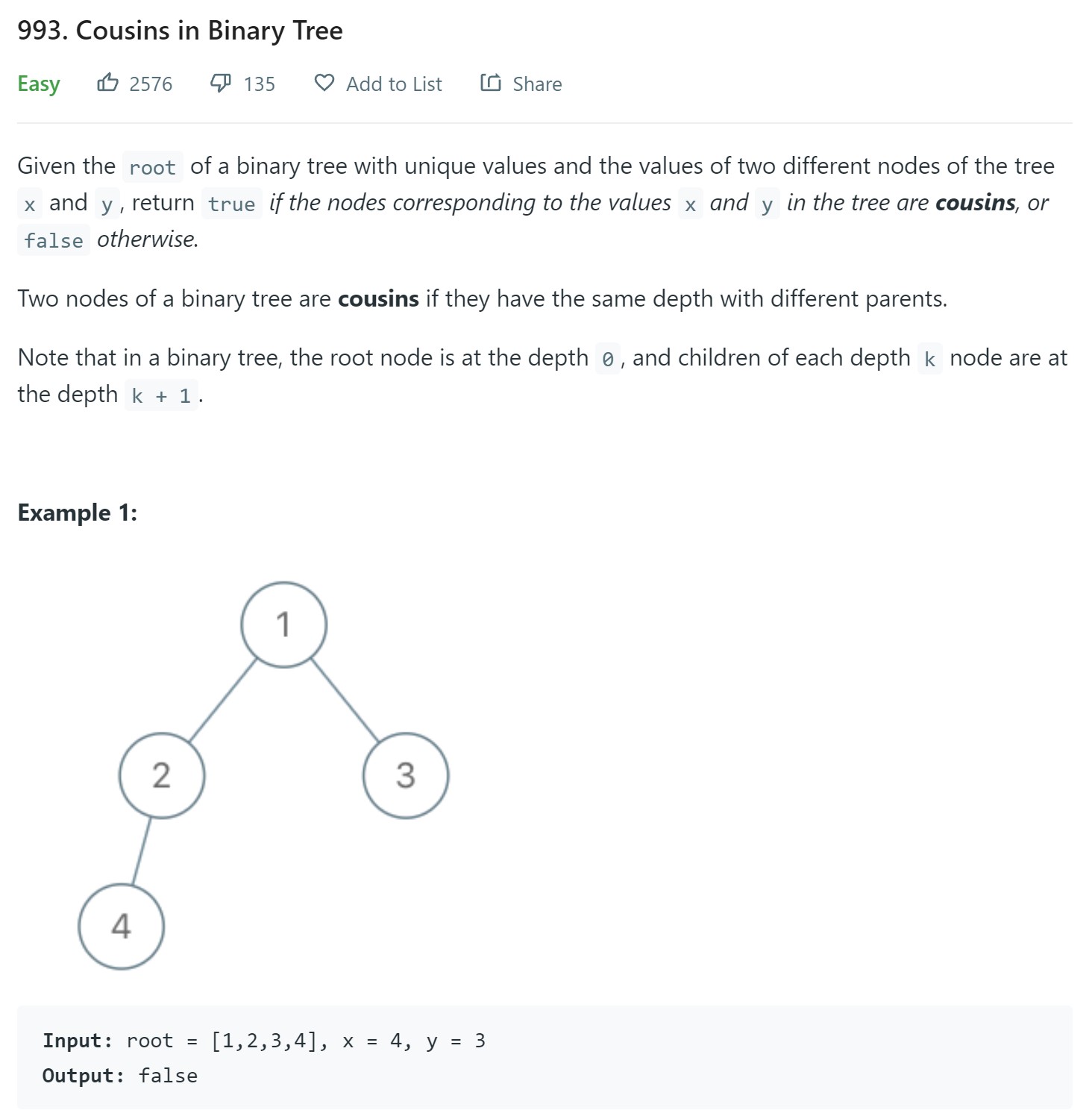

11. Cousins in a Binary Tree - LC 993 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isCousins(self, root: Optional[TreeNode], x: int, y: int) -> bool:
	if root is None:
	    return False

	q = deque([root])
	while len(q):
	    numnodes = len(q)
	    px, py = None, None
	    for _ in range(numnodes):
		node = q.popleft()
		if node.left is not None:
		    q.append(node.left)
		    if node.left.val == x:
			px = node.val
		    if node.left.val == y:
			py = node.val
		if node.right is not None:
		    q.append(node.right)
		    if node.right.val == x:
			px = node.val
		    if node.right.val == y:
			py = node.val
	    if px is not None and py is not None and px != py:
		return True
	return False
  • Complexity Analysis

  • Coding Mistakes

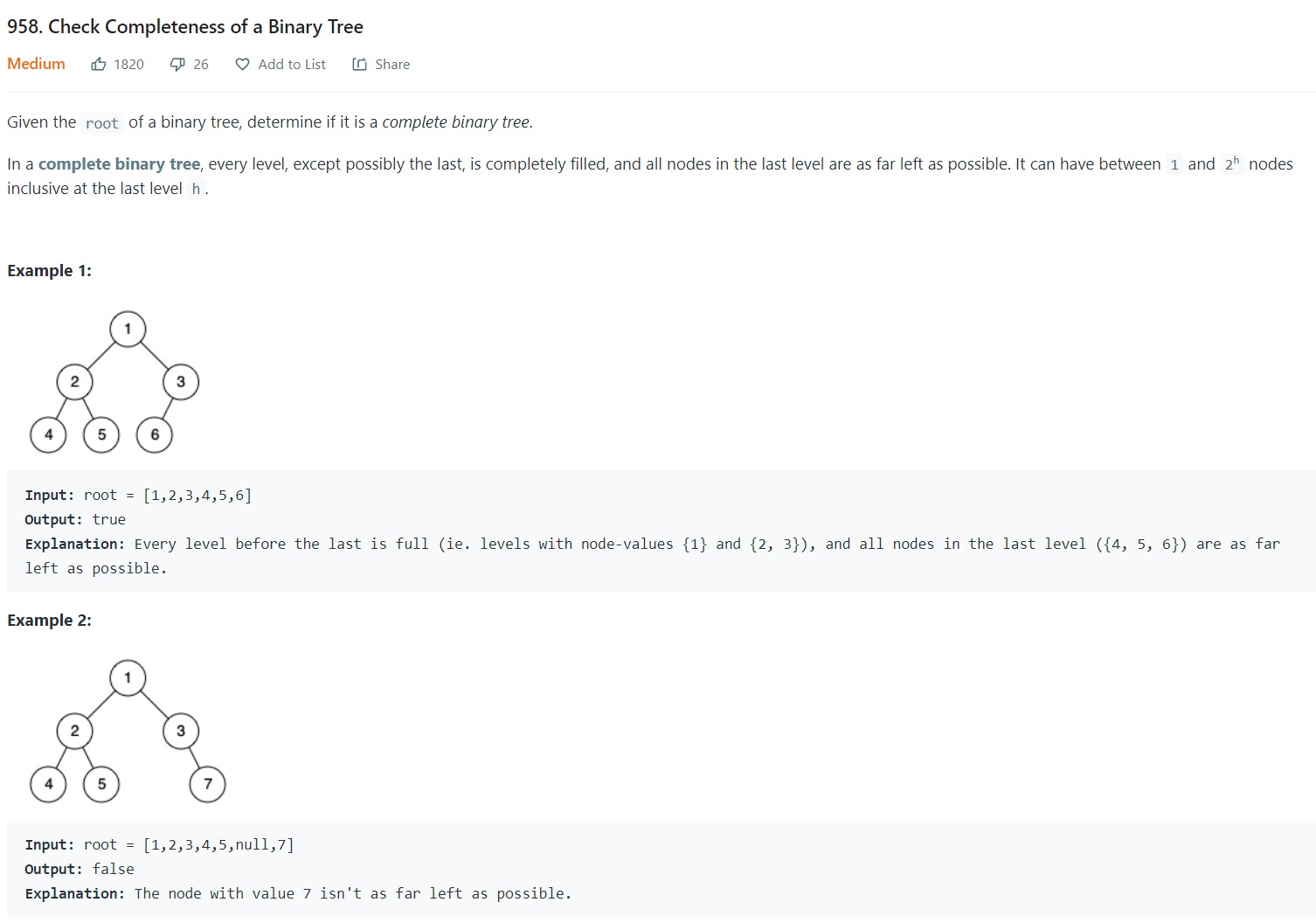

12. Check completeness of a Binary Tree - LC 958 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

    def isCompleteTree(self, root: Optional[TreeNode]) -> bool:
    if root is None:
	return False

    expectedid = 1

    q = deque([(root, 1)])

    while len(q):
	numnodes = len(q)
	for _ in range(numnodes):
	    (node, id) = q.popleft()
	    if id == expectedid:
		expectedid += 1
	    else:
		return False
	    if node.left is not None:
		q.append((node.left, 2*id))
	    if node.right is not None:
		q.append((node.right, 2*id + 1))
    return True

  • Points to Note

    Binary heap has two properties:

    • Structural Property:

      • Complete binary tree (except possibly the last one)
      • All the nodes in the last level are as far left as possible.

    • Heap Property:

      • Priority of every node needs to be less than priority its two children if it is min heap and larger if it is max heap.

    • The above property can be used for this problem.

    • Number the nodes (address or roll number) from 1 onwards from left to right.

    • Thus level order traversal of this binary tree will correspond to the order in which they appear in an array.

    • There is a clean relationship between node and its parent.

      • To go to parent: Take the address and divide by two. Instead of following pointers, we can use

      the index to reach parent.

      • To go down to left child, double the address and
      • To get to right child double the address + 1

    • If we do a level order traversal, all the nodes should appear consequtively. If there is any null/gap in the middle, then the tree is not complete binary tree.

  • Complexity Analysis

    • Time Complexity: \(O(n)\)
    • Space Complexity: \(O(n)\) Length of the queue

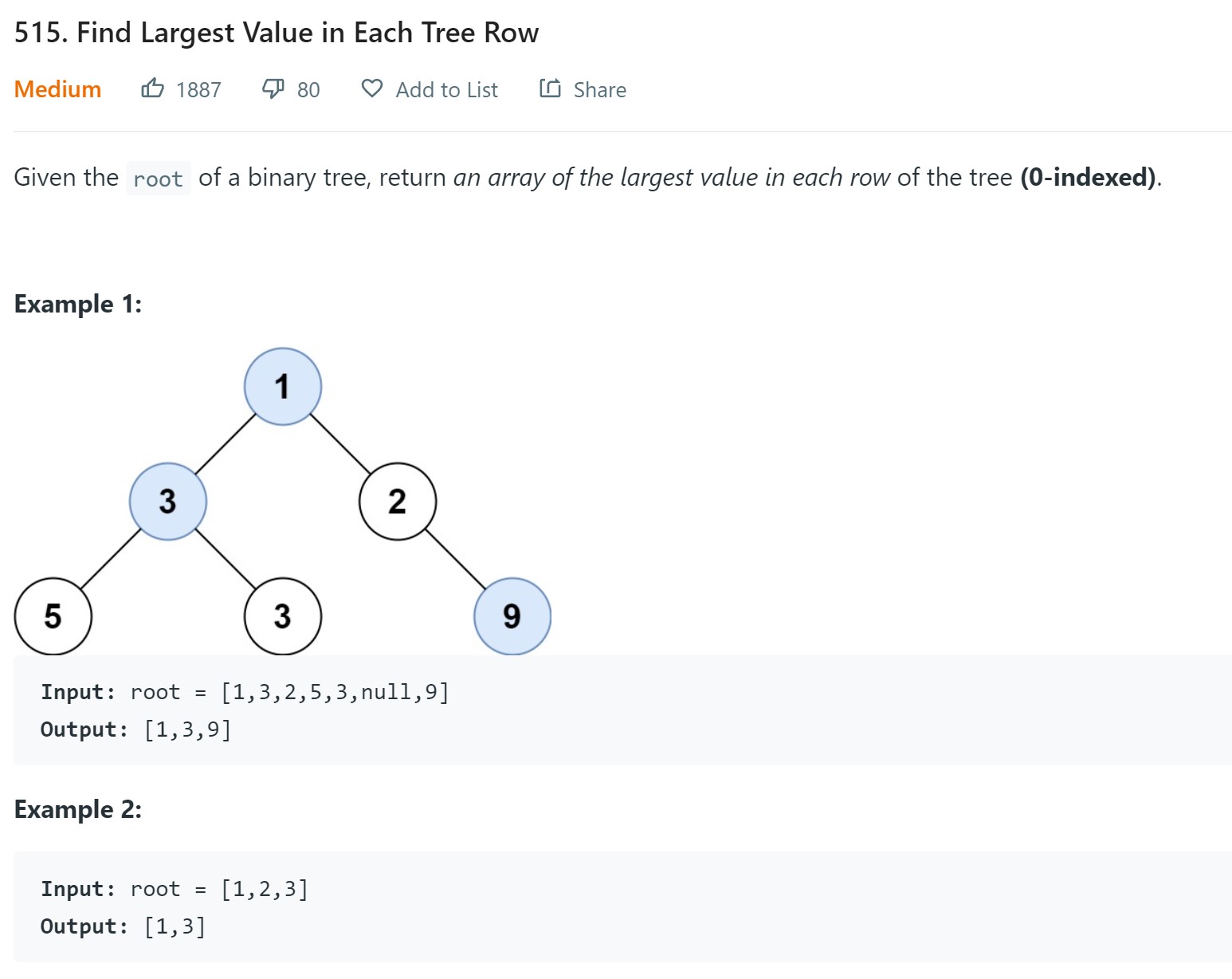

13. Find largest value in each tree row - LC 515 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def largestValues(self, root: Optional[TreeNode]) -> List[int]:
	if root is None:
	    return []

	result = []
	q = deque([root])
	largest = float(-inf)
	while len(q):
	    numnodes = len(q)
	    largest = float(-inf)
	    for _ in range(numnodes):
		node  = q.popleft()
		largest = max(largest, node.val)
		if node.left is not None:
		    q.append(node.left)
		if node.right is not None:
		    q.append(node.right)
	    result.append(largest)
	return result
  • Complexity Analysis

  • Coding Mistakes

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

    def largestValues(root: Optional[TreeNode]) -> List[int]:
    if root is None:
	return []

    result = []
    q = deque([root])
    while len(q):
	numnodes = len(q)
	largest = float(-inf)  #2022-02-28: This variable should be declared here not outside while loop
	for _ in range(numnodes):
	    node  = q.popleft()
	    largest = max(largest, node.val)
	    if node.left is not None:
		q.append(node.left)
	    if node.right is not None:
		q.append(node.right)
	result.append(largest)
    return result

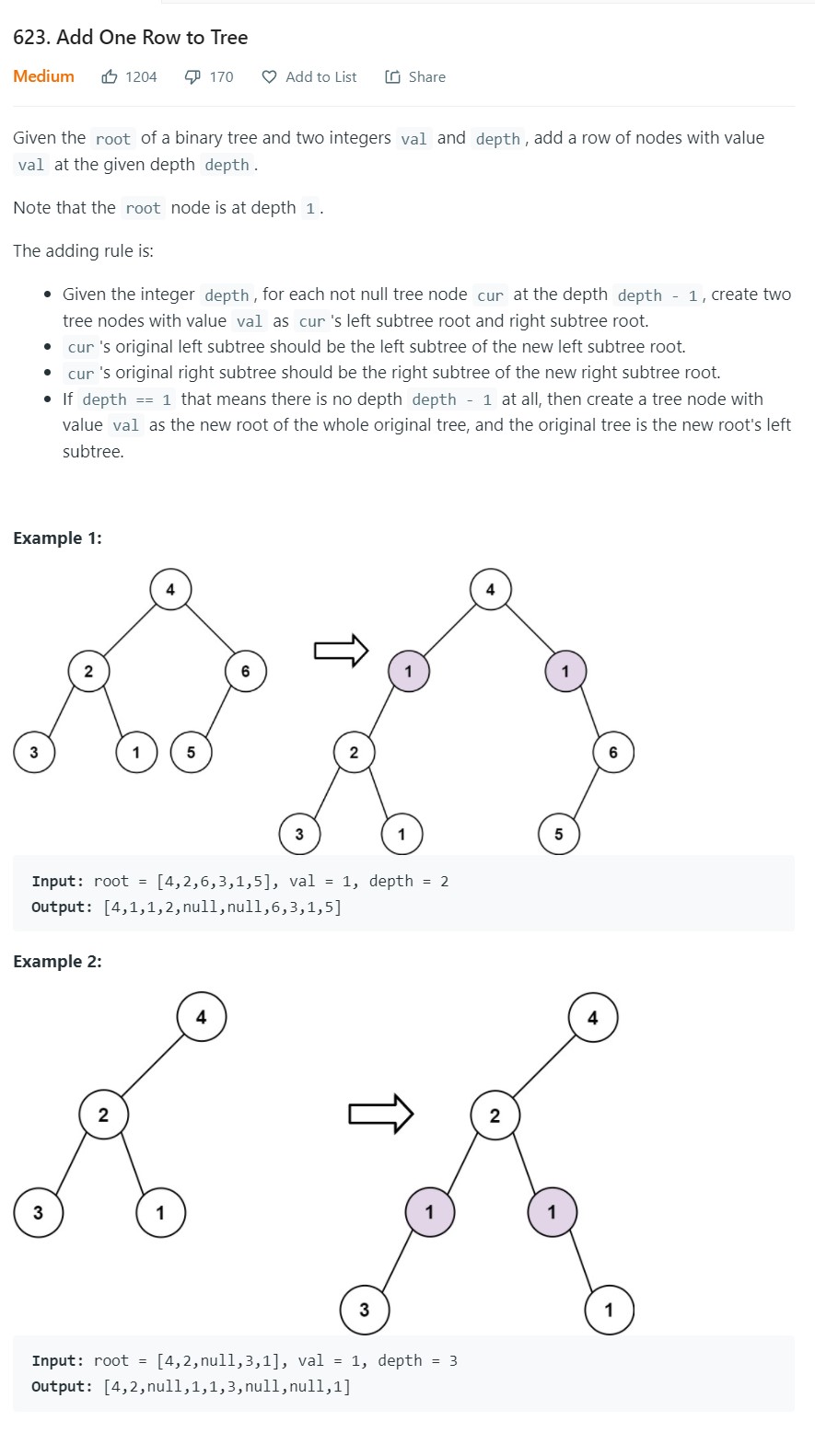

14. Add one row to Tree - LC 623 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def addOneRow(self, root: Optional[TreeNode], val: int, depth: int) -> Optional[TreeNode]:
	if depth == 1:
	    newnode = TreeNode(val = val)
	    newnode.left = root
	    root = newnode
	    return root
	q = deque([root])
	level = 0
	while len(q):
	    numnodes = len(q)
	    level += 1
	    for _ in range(numnodes):
		node = q.popleft()
		if level < depth-1:
		    if node.left is not None:
			q.append(node.left)
		    if node.right is not None:
			q.append(node.right)
		elif level == depth-1:
		    newleft = TreeNode(val)
		    newright = TreeNode(val)
		    newleft.left = node.left
		    newright.right = node.right
		    node.left = newleft
		    node.right = newright
	return root
  • Complexity Analysis

  • Coding Mistakes

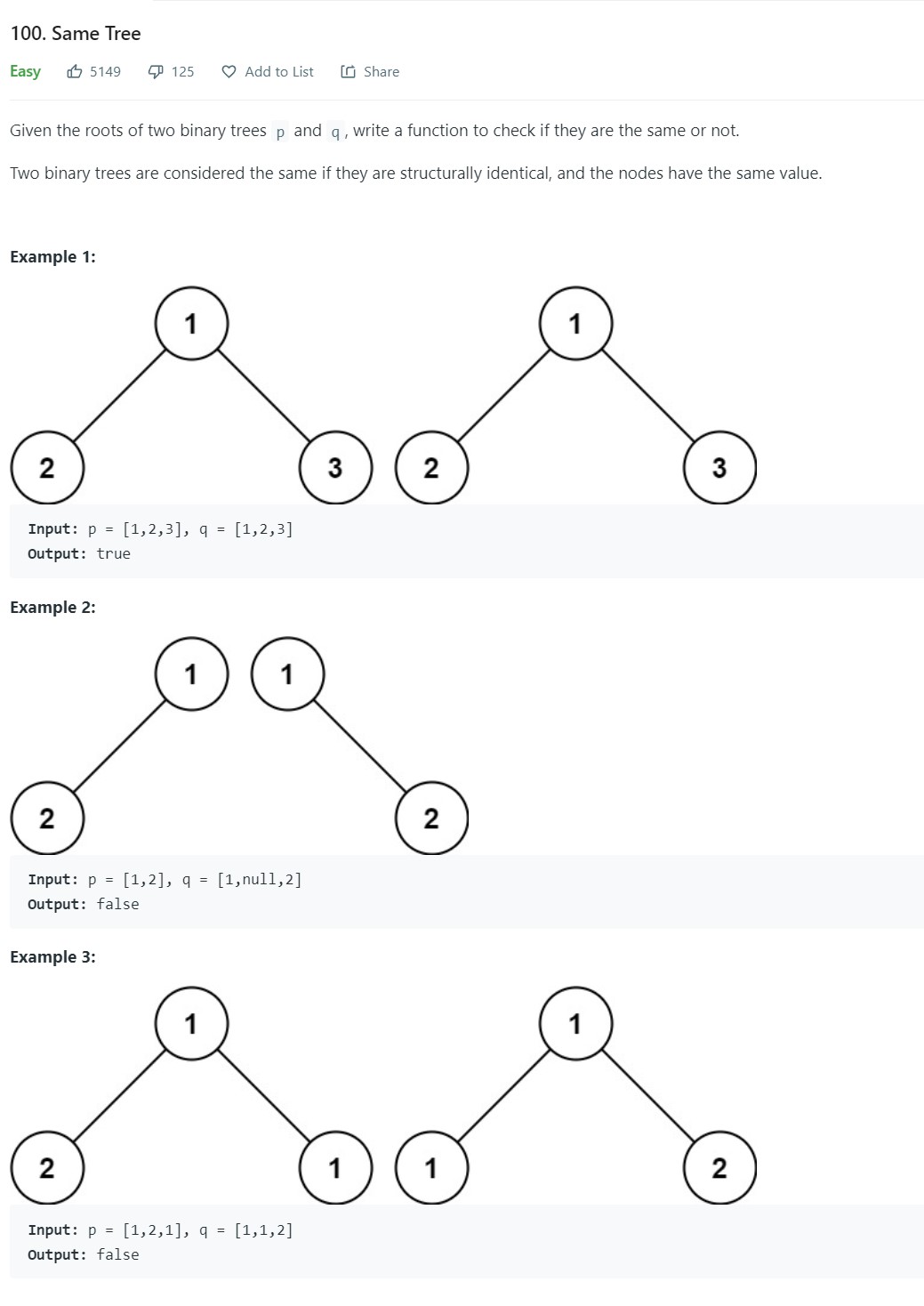

15. Same Tree - LC 100 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isSameTree(self, p: Optional[TreeNode], q: Optional[TreeNode]) -> bool:
	if p is None and q is None:
	    return True

	if (p is None and q is not None)  or (q is None and p is not None):
	    return False
	q = deque([(p,q)])

	while len(q):
	    numnodes = len(q)
	    for _ in range(numnodes):
		(nodep, nodeq) = q.popleft()
		if nodep.left is not None and nodeq.left is not None:  #Both have left child
		    q.append((nodep.left, nodeq.left))
		elif nodep.left is not None or nodeq.left is not None: # One of the child is Null
		    return False
		if nodep.right is not None and nodeq.right is not None: # Both have right child
		    q.append((nodep.right, nodeq.right))
		elif nodep.right is not None or nodeq.right is not None: # One of the right child is Null
		    return False
		if nodep.val != nodeq.val:
		    return False
	return True

  • Points to Note:

    • If both the roots of the trees are null, return true. If one of them is null, return false
    • If both the roots are non-null, then add them to the queue. We have a few conditions:
      • Check if both of them are null
      • check if one of them is null
      • Use two queues if it is useful
      • The edge case for single tree is if root is Null. For two trees, atleast one of them is null.
    • If both the nodes have no children, then nothing to be done.

  • Complexity Analysis

    • Time Complexity = \(O(N)\)
    • Space Complexity = \(O(N)\)

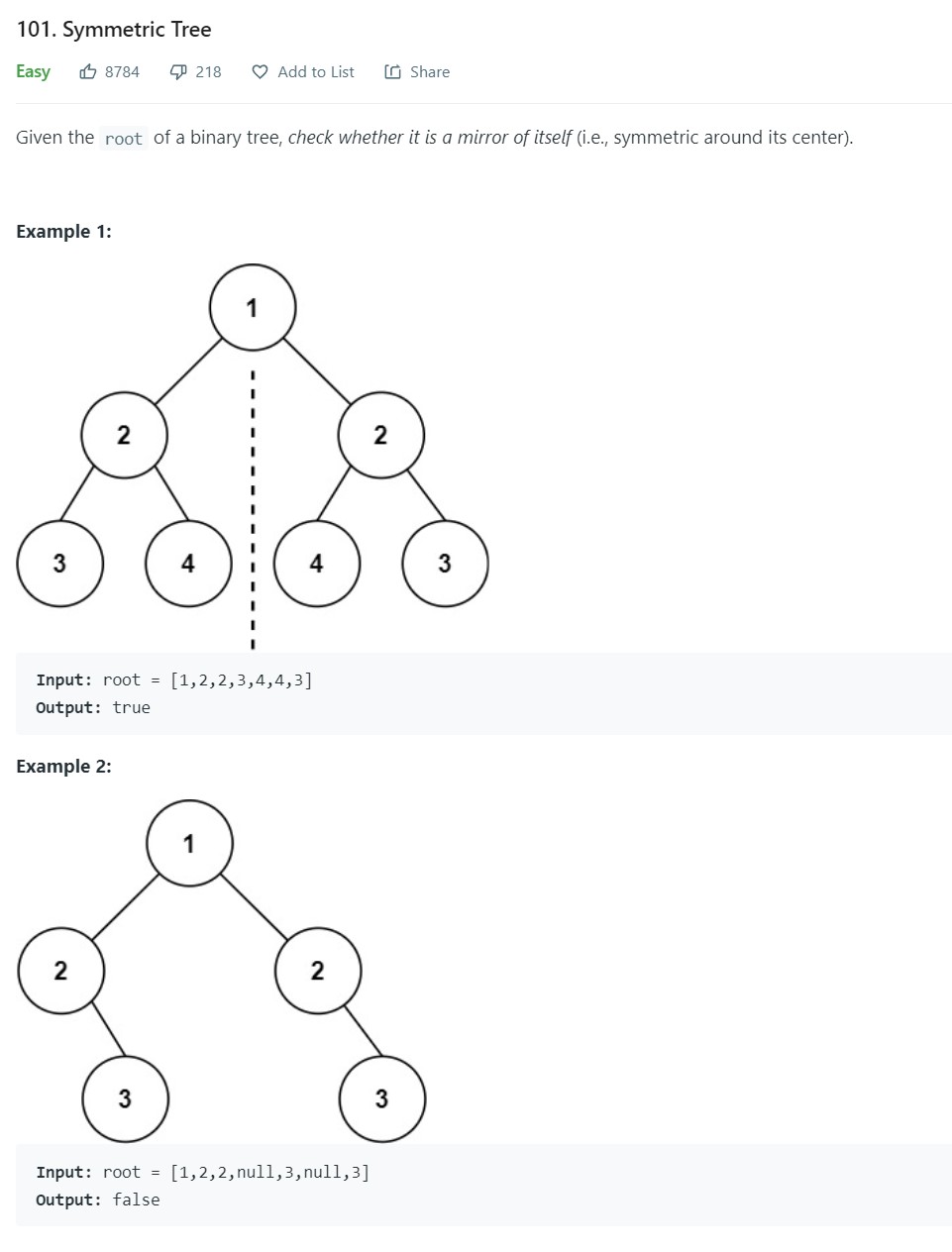

16. Symmetric Tree - LC 101 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

        # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isSymmetric(self, root: Optional[TreeNode]) -> bool:
	if root is None:
	    return True

	q = deque([(root, root)])
	while len(q):
	    numnodes = len(q)
	    for _ in range(numnodes):
		nodeL, nodeR = q.popleft()
		if nodeL.left is not None and nodeR.right is not None:
		    q.append((nodeL.left, nodeR.right))
		elif nodeL.left is not None or nodeR.right is not None:
		    return False

		if nodeL.right is not None and nodeR.left is not None:
		    q.append((nodeL.right, nodeR.left))
		elif nodeL.right is not None or nodeR.left is not None:
		    return False
		if nodeL.val != nodeR.val:
		    return False
	return True
  • Complexity Analysis

  • Coding Mistakes

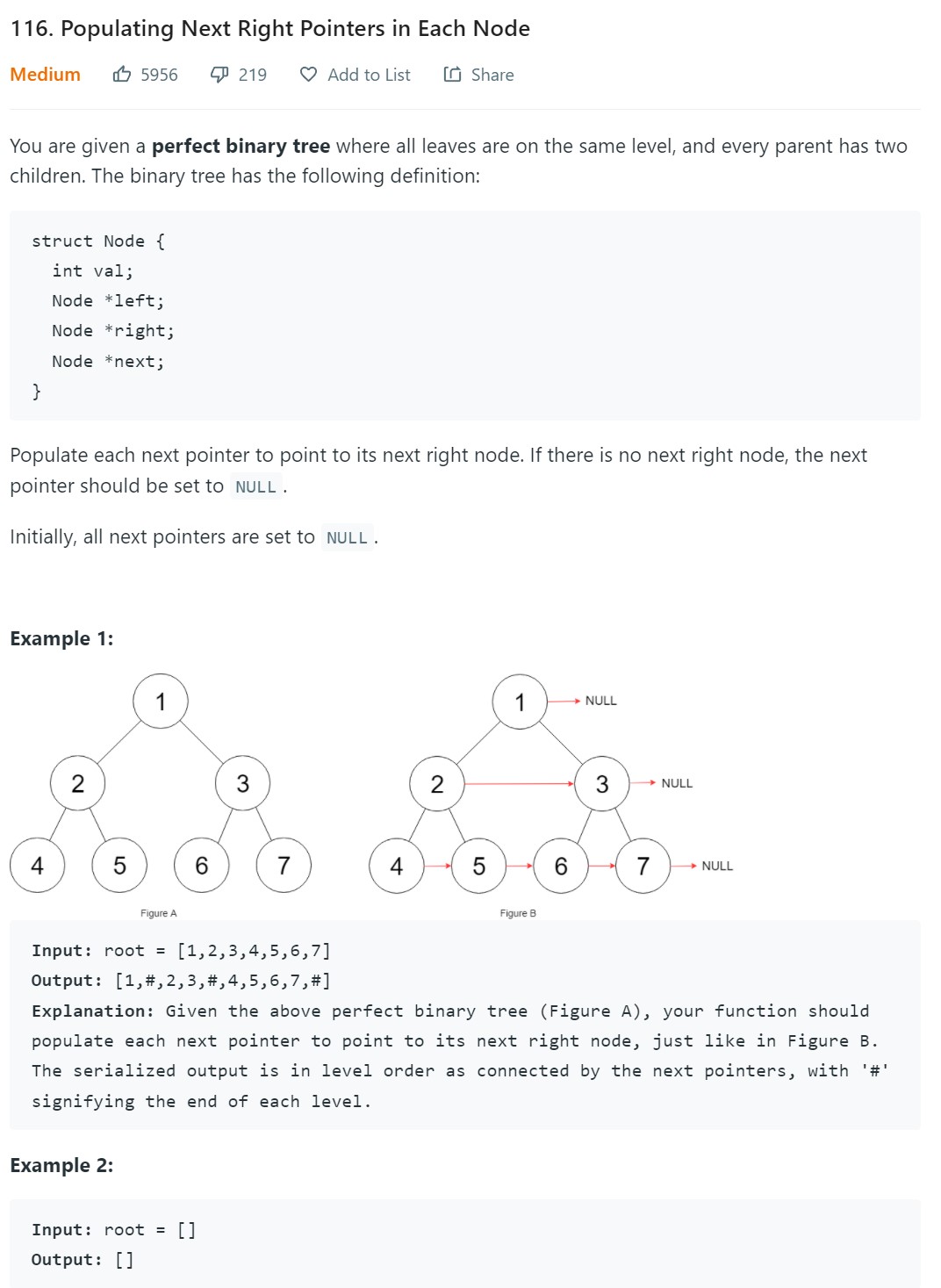

17. Populating next pointers in each node - LC 116 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

    """
# Definition for a Node.
class Node:
    def __init__(self, val: int = 0, left: 'Node' = None, right: 'Node' = None, next: 'Node' = None):
	self.val = val
	self.left = left
	self.right = right
	self.next = next
"""

class Solution:
    def connect(self, root: 'Optional[Node]') -> 'Optional[Node]':
	if root is None:
	    return None

	q = deque([root])
	while len(q):
	    numnodes = len(q)
	    prevnode = None
	    for _ in range(numnodes):
		node = q.popleft()
		if node.left is not None:
		    q.append(node.left)
		if node.right is not None:
		    q.append(node.right)
		if prevnode is not None:
		    prevnode.next = node
		prevnode = node
	return root
  • Complexity Analysis

  • Coding Mistakes

18. Clone a binary Tree (Not an LC problem)

Stack

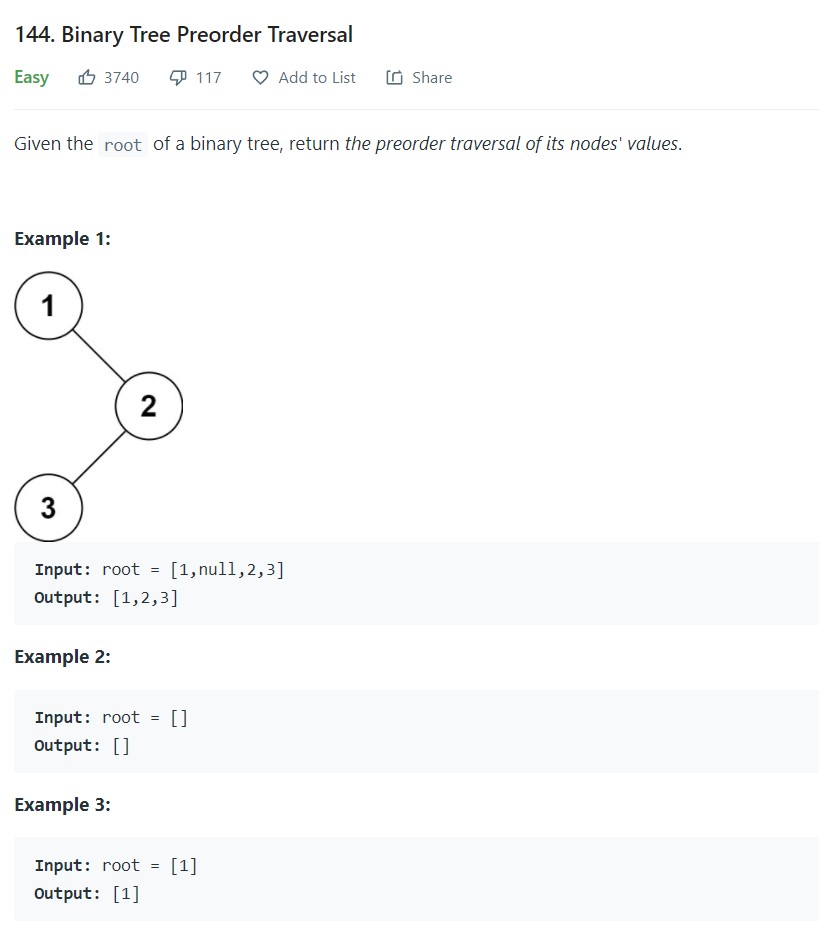

1. Binary Tree preorder traversal - 144 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

    #Iterative Solution
# Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def preorderTraversal(self, root: Optional[TreeNode]) -> List[int]:
	if root is None:
	    return None
	result = []
	stack = [(root, None)]
	while len(stack):
	    (node, zone) = stack[-1]
	    if zone is None:
		stack[-1] = (node, 'arrival')
		result.append(node.val)
		if node.left is not None:
		    stack.append((node.left, None))

	    elif zone == 'arrival':
		stack[-1] = (node, "interim")
		if node.right is not None:
		    stack.append((node.right, None))
	    elif zone == 'interim':
		stack[-1] = ((node, 'departure'))
		stack.pop()
	return result
  • Complexity Analysis

  • Coding Mistakes

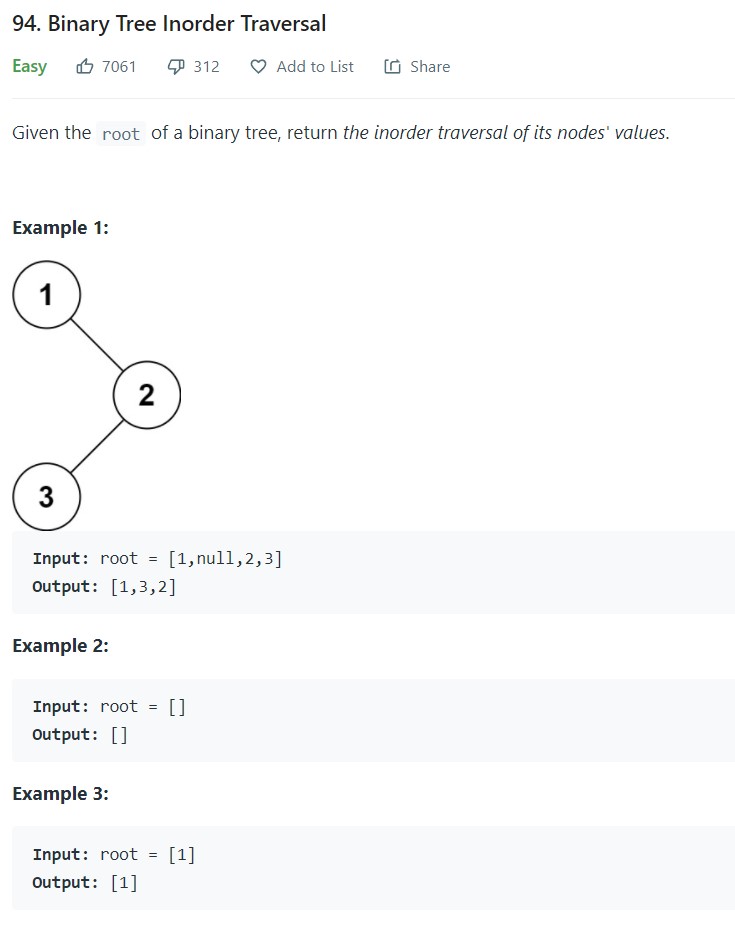

2. Binary Tree Inorder traversal - 94 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def inorderTraversal(self, root: Optional[TreeNode]) -> List[int]:
	if root is None:
	    return []

	result = []

	stack = [(root, None)]

	while stack:
	    (node, zone) = stack[-1]
	    if zone is None:
		stack[-1] = (node, 'arrival')
		if node.left is not None:
		    stack.append((node.left, None))
	    elif zone == 'arrival':
		stack[-1] = (node, 'interim')
		result.append(node.val)
		if node.right is not None:
		    stack.append((node.right, None))
	    elif zone == 'interim':
		stack[-1] = (node, 'departure')
		stack.pop()
	return result
  • Complexity Analysis

  • Coding Mistakes

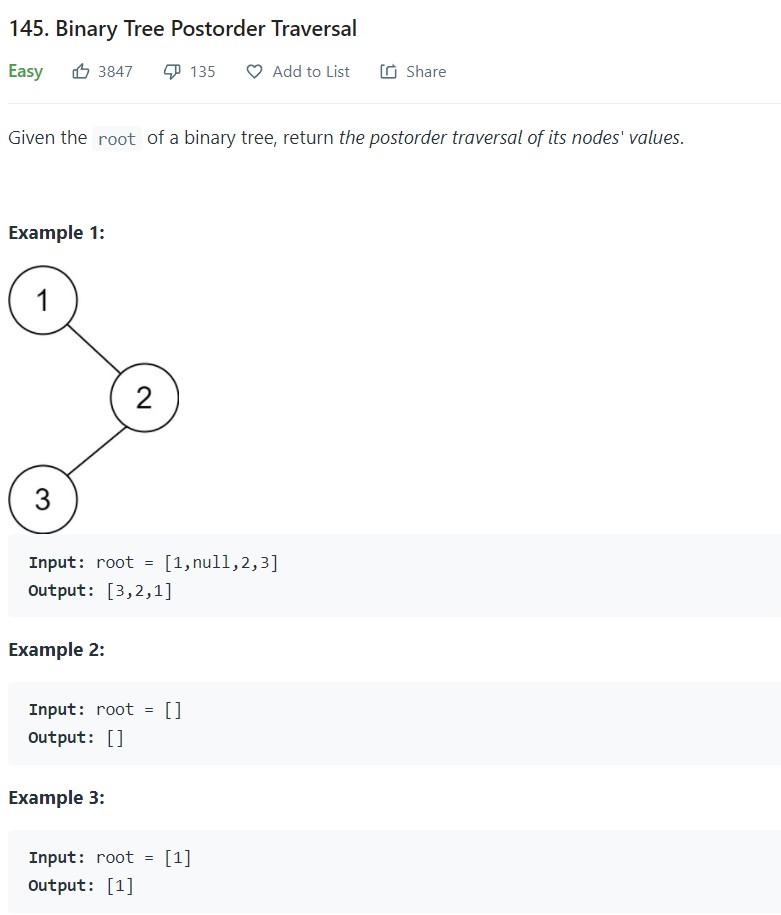

3. Binary Tree Postorder traversal - 145 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right

#Iterative Solution
class Solution:
    def postorderTraversal(self, root: Optional[TreeNode]) -> List[int]:
	if root is None:
	    return []

	result = []
	stack = [(root, None)]

	while stack:
	    (node, zone) = stack[-1]
	    if zone is None:
		stack[-1] = (node, 'arrival')
		if node.left is not None:
		    stack.append((node.left, None))
	    elif zone == 'arrival':
		stack[-1] = (node, 'interim')
		if node.right is not None:
		    stack.append((node.right, None))
	    elif zone == 'interim':
		stack[-1] = ((node, 'departure'))
		result.append(node.val)
		stack.pop()
	return result

# Recursive Solution:
# Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def postorderTraversal(self, root: Optional[TreeNode]) -> List[int]:
	result = []
	if root is None:
	    return result
	def dfs(node):
	    if node.left is  None and node.right is  None:
		result.append(node.val)
		return
	    if node.left is not None:
		dfs(node.left)
	    if node.right is not None:
		dfs(node.right)
	    result.append(node.val)
	dfs(root)
	return result
  • Complexity Analysis

  • Coding Mistakes

Top Down DFS

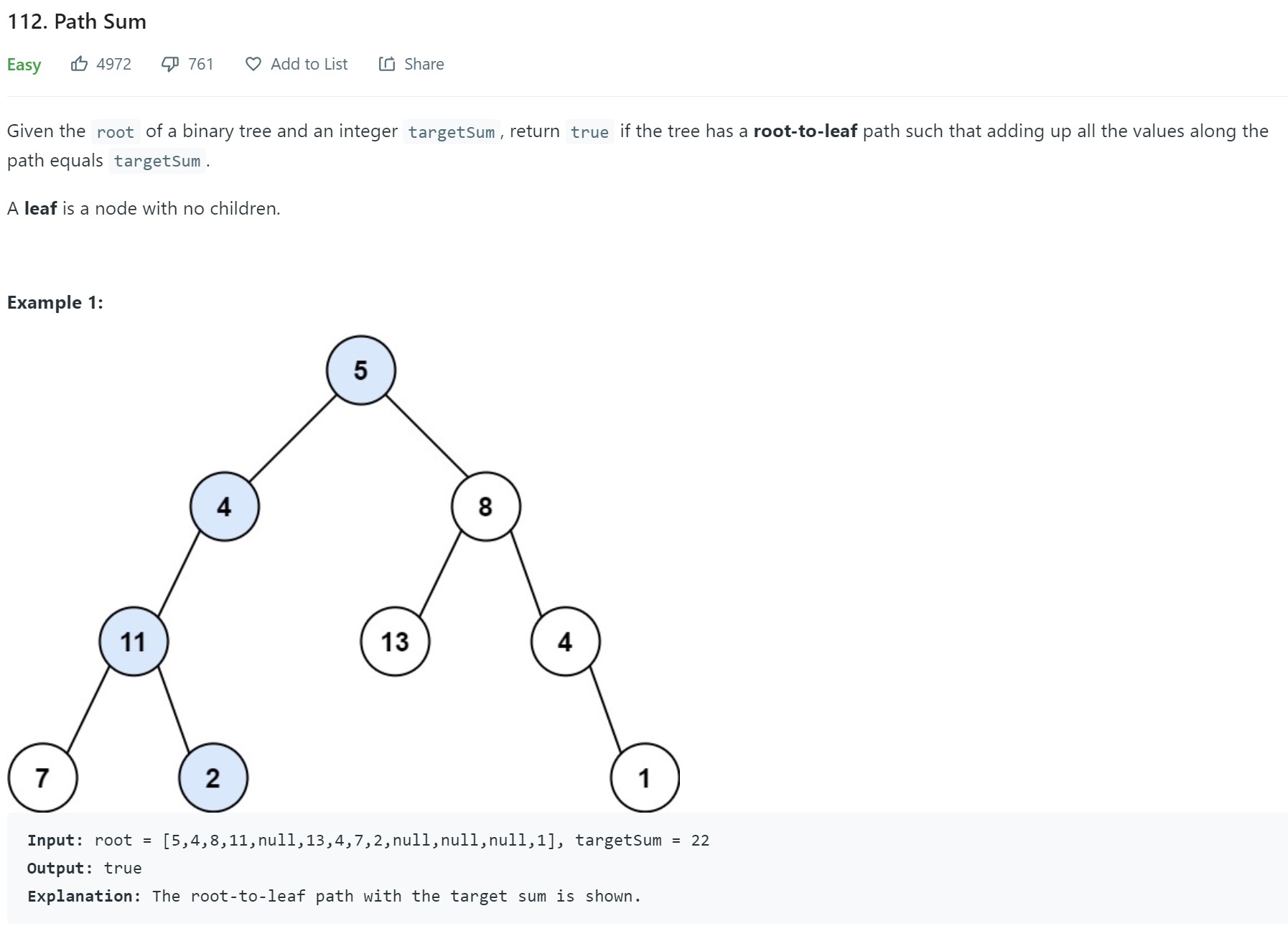

1. Path Sum - LC 112 - Easy

  • Code

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def hasPathSum(self, root: Optional[TreeNode], targetSum: int) -> bool:
	if root is None:
	    return  False
	result = [False]
	def dfs(node, target):
	    if node.left is None and node.right is None:
		if node.val == target:
		    result[0] = True
		return

	    if node.left is not None:
		dfs(node.left, target- node.val)

	    if node.right is not None:
		dfs(node.right, target-node.val)

	dfs(root, targetSum)
	return result[0]

  • Points to Note

    • The reason edge case is checked at the parent is because in this case if the sum is 0, and tree is empty, leetcode wants to return false.

    • In Top down DFS, important part is the area (pre order) where the info. is passed to sub ordinates.

    • Using global bag to fill the response from internal stack frame is tricky in python. It should not be a variable but a list[0]. Keep this in mind.

    • Complexity

      • Time complexity: Each worker is doing constant amoutn of work whether internal or leaf node worker. There are at max N nodes so N workers = O(N)

      • The maxisum size of the call stack is equal to the max height of the tree so space complexity is O(N). This is usual of Top down DFS.

  • Coding Mistakes

    2022-02-28:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

    class Solution:
    def hasPathSum(self, root: Optional[TreeNode], targetSum: int) -> bool:
	if root is None:
	    return  False
	result = [False]
	def dfs(node, target):
	    if node.left is None and node.right is None:
		if node.val == target:
		    result[0] = True
		return
	    if node.left is not None:
		dfs(node.left, target- node.val)
	    if node.right is not None:
		dfs(node.right, target-node.val)
	dfs(root, targetSum)
	return result[0]

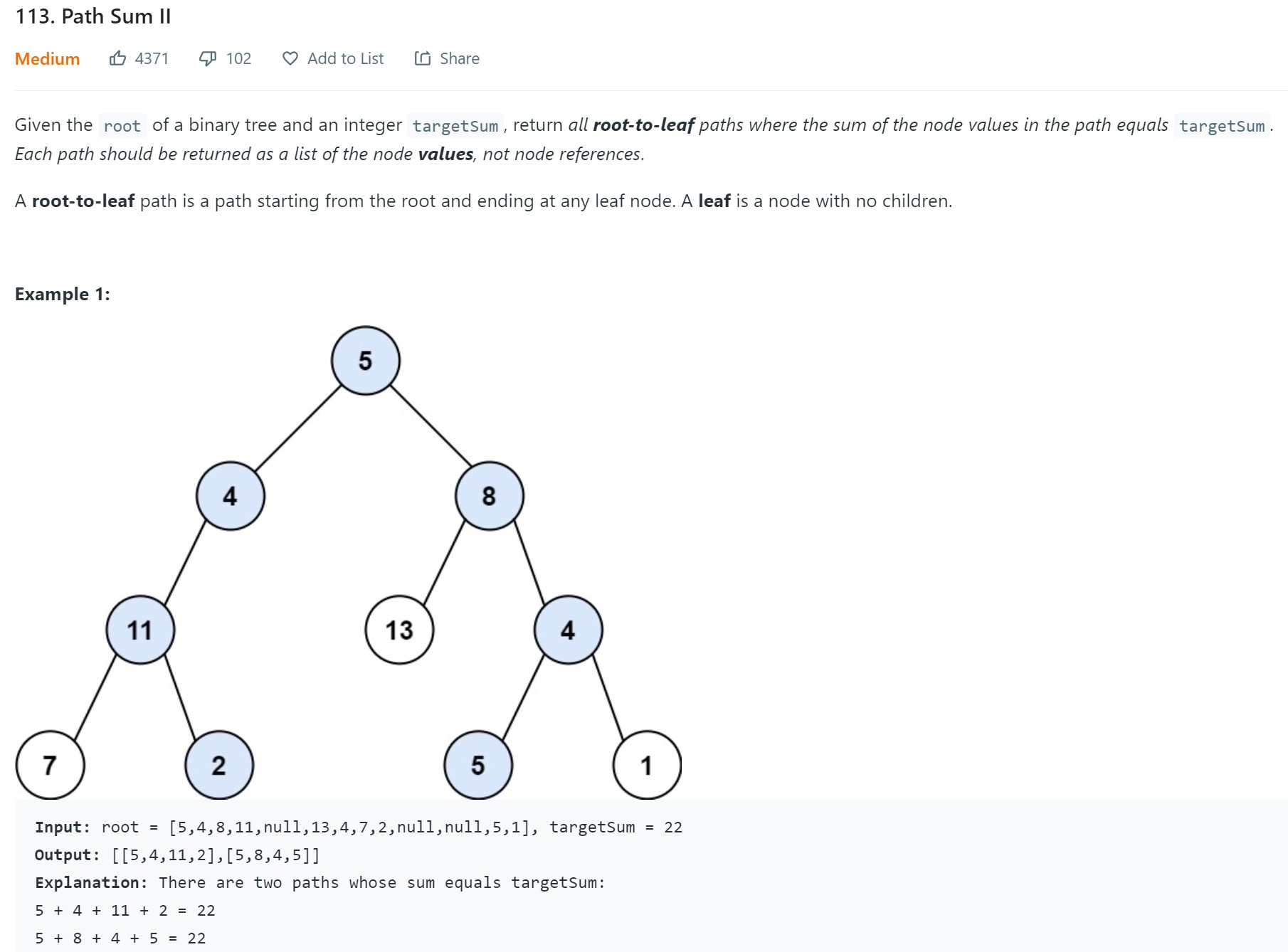

2. Path Sum II - LC 113 - Medium

  • Code

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def pathSum(self, root: Optional[TreeNode], targetSum: int) -> List[List[int]]:

	if root is None:
	    return []
	result = []

	def dfs(node, target, slate):
	    if node.left is None and node.right is None:
		if node.val == target:
		    slate.append(node.val)
		    result.append(slate[:])
		    slate.pop()
		return
	    else:

		if node.left is not None:
		    slate.append(node.val)
		    dfs(node.left, target - node.val, slate)
		    slate.pop()

		if node.right is not None:
		    slate.append(node.val)
		    dfs(node.right, target - node.val, slate)
		    slate.pop()
	dfs(root, targetSum, [])
	return result

  • Points to Note:

    • Remember to pop off the slate once it is appended…(even for the leaf node). The output may have duplicate root values if slate is not popped in the base case.

  • Complexity:

    -   Time complexity: In this case, there is additional effort of copying
    the slate to global box.  In a complete balance binary tree, there
    are roughly n/2 workers at leaf level. The worst case could be that
    each and every path is adding up to the target sum. The length of
    the slate could be log N in this case and since there are n/2
    workers it could be n/2 log N or NlogN.

-   Space Complexity: Every single path could be added to the global
    result and there are n/2 paths and each path could be of log N
    long. So the space complexity also is NlogN.

-   Here is it not hte call stack but copying the data to global box is
    the bottleneck.

    Bottom Up DFS

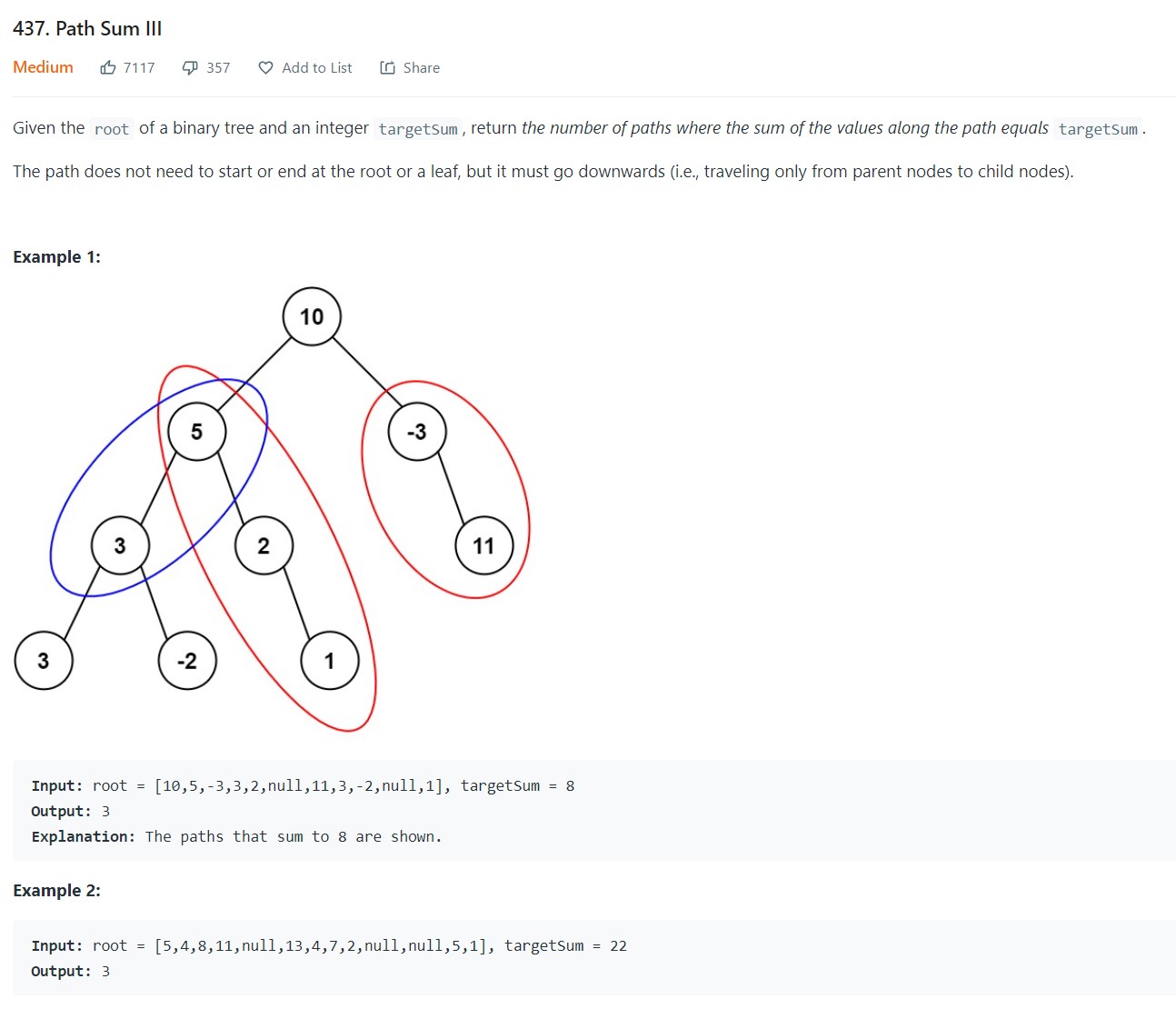

3. Path Sum III - LC 437 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def pathSum(self, root: Optional[TreeNode], targetSum: int) -> int:
      if root is None:
	  return 0
      globalcount = [0]
      def dfs(node, target, slate):
	  slate.append(node.val)

	  #Check every suffix sum to see how many add up to the target
	  suffixsum = 0
	  for i in range(len(slate)-1, -1, -1):
	      suffixsum += slate[i]
	      if suffixsum == target:
		  globalcount[0] += 1

	  #Base Case:
	  if node.left is None and node.right is None:
	      pass

	  if node.left is not None:
	      dfs(node.left, target, slate)
	  if node.right is not None:
	      dfs(node.right, target, slate)
	  slate.pop()
      dfs(root, targetSum, [])
      return globalcount[0]

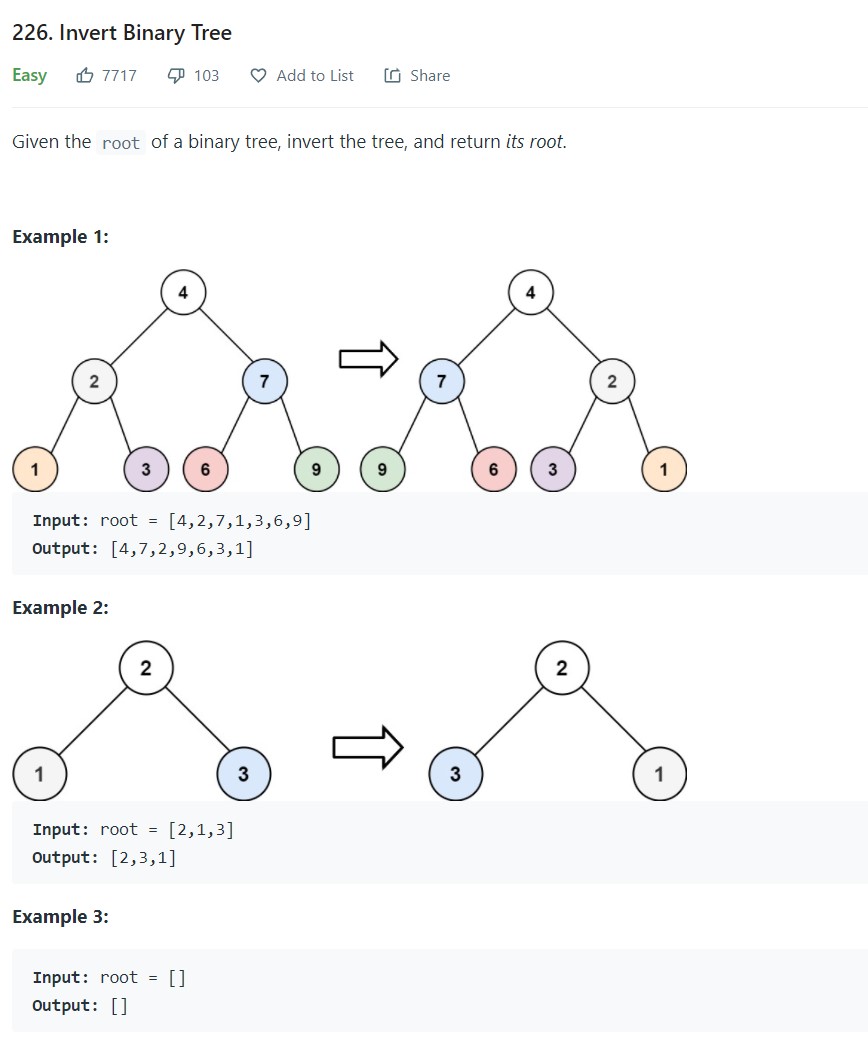

4. Invert Binary Tree - LC 226 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

    def invertTree(self, root: Optional[TreeNode]) -> Optional[TreeNode]:
	  # DFS Approach
	  '''
	  if root is None:
	      return None
	  right = self.invertTree(root.right)
	  left = self.invertTree(root.left)
	  root.right = left
	  root.left = right
	  return root
	  '''
	  # BFS Approach
	  if root is None:
	      return None
	  q = deque([root])
	  while len(q):
	      node = q.popleft()
	      node.left, node.right = node.right, node.left
	      if node.left is not None:
		  q.append(node.left)
	      if node.right is not None:
		  q.append(node.right)
	  return root

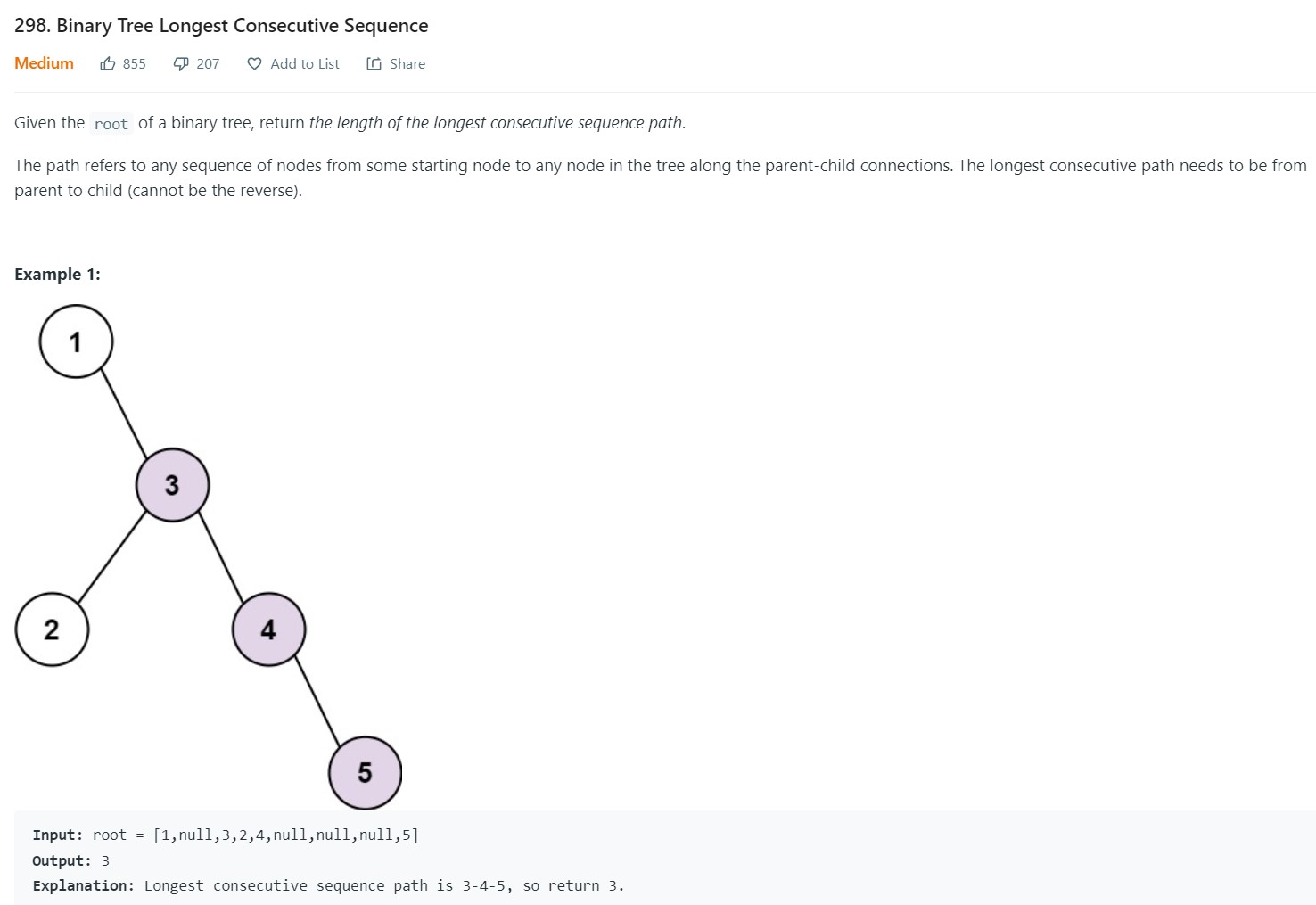

5. Binary Tree Longest Consecutive Sequence - LC 298 - Medium

Video: Tree Series 2 - 2:10:32 hrs

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

    class Solution:
    def longestConsecutive(self, root: Optional[TreeNode]) -> int:
	if root is None:
	    return 0
	globalmax = [0]

	def dfs(node, pval, lengthsofar):
	    # Common to base and leaf nodes:
	    if node.val == pval + 1:
		lengthsofar += 1
	    else:
		lengthsofar = 1

	    if lengthsofar > globalmax[0]:
		globalmax[0] = lengthsofar

	    #Base Case:
	    if node.left is None and node.right is None:
		pass

	    if node.left is not None:
		dfs(node.left, node.val, lengthsofar)
	    if node.right is not None:
		dfs(node.right, node.val, lengthsofar)

	dfs(root, root.val, 0)
	return globalmax[0]

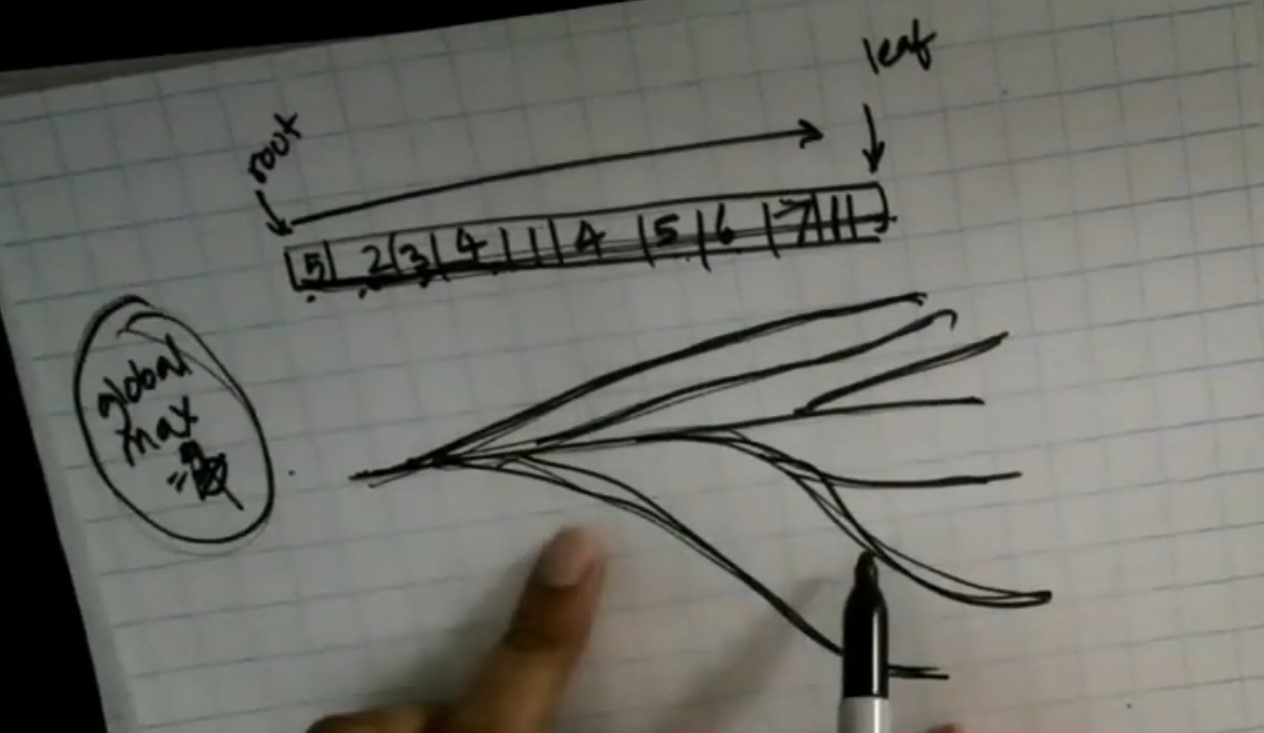

  • Points to Note

    • One single path..need not start from root nor end at leaf level. The nodes should have consequtive values.
    • Only ascending order.
    • Single scan from left to right. Keep a consequtive sequence that is current. Update the global max if the current sequence is higher than global max
    • Two things to be done:
      • Extending current consequtive sequence
      • Keep a global max.
      • Since we are going different paths, use depth first search.
      • In each path, it is effectively like searching an array, going from left to right
      • At any point, parent has to pass the current sequence length.
      • We also need to know that we are extending parent’s value by 1.

  • Complexity Analysis

    • Time Complexity: \(O(N)\)
    • Space Complexity: \(O(N)\)

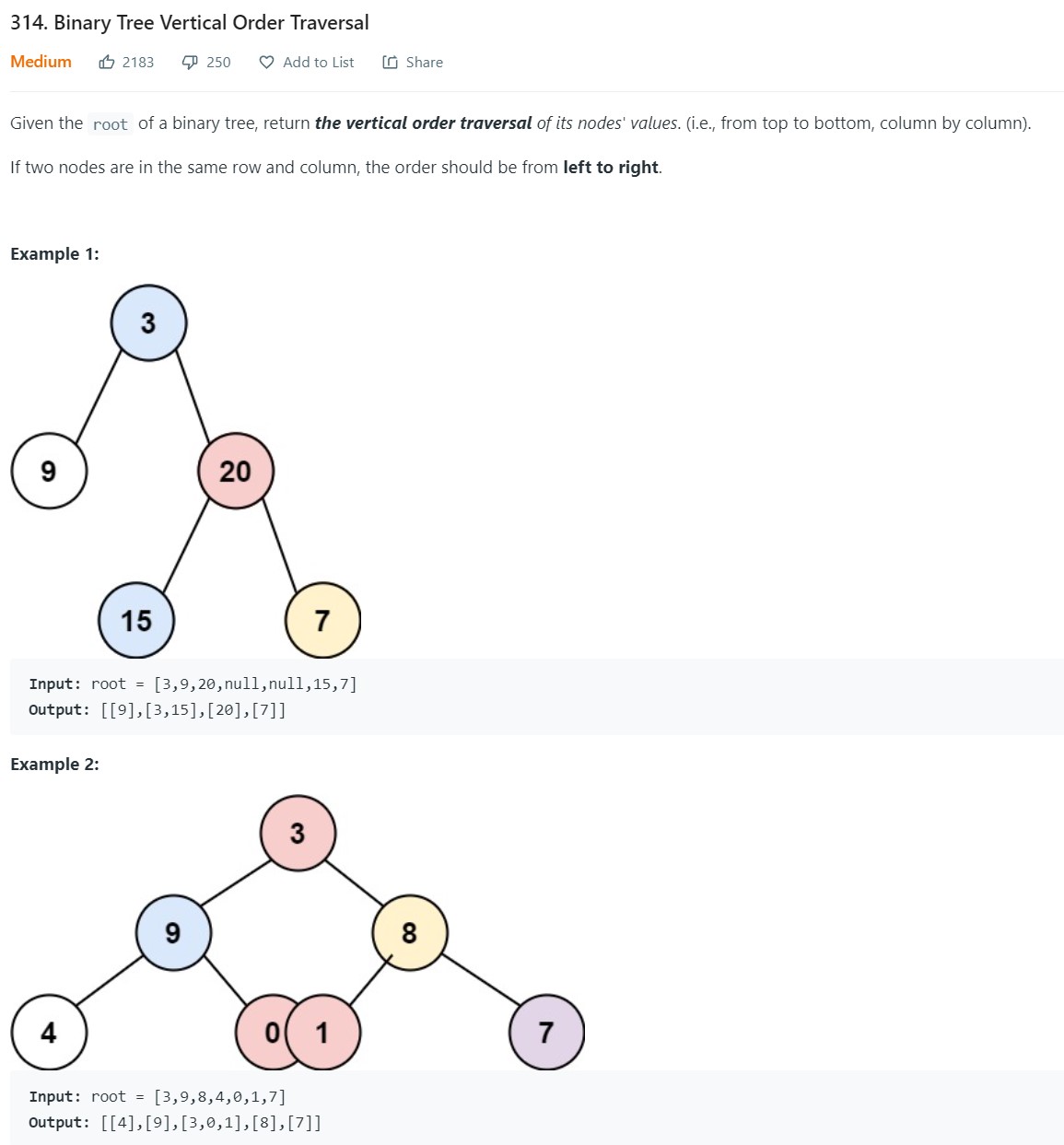

6. Binary Tree Vertical Order Traversal - LC 314 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def verticalOrder(self, root: Optional[TreeNode]) -> List[List[int]]:
	if root is None:
	    return []
	nlist = []
	plist = []
	zlist = [[]]
	q = deque([(root, 0)])
	while len(q):
	    (node, x) = q.popleft()
	    if x < 0:
		if len(nlist) < abs(x):
		    nlist.append([])
		nlist[abs(x) - 1].append(node.val)

	    elif x > 0:
		if len(plist) < x:
		    plist.append([])
		plist[x-1].append(node.val)
	    else:
		zlist[0].append(node.val)

	    if node.left is not None:
		q.append((node.left, x-1))

	    if node.right is not None:
		q.append((node.right, x+1))
	nlist.reverse()
	nlist.extend(zlist)
	nlist.extend(plist)
	return nlist

  • Points to Note

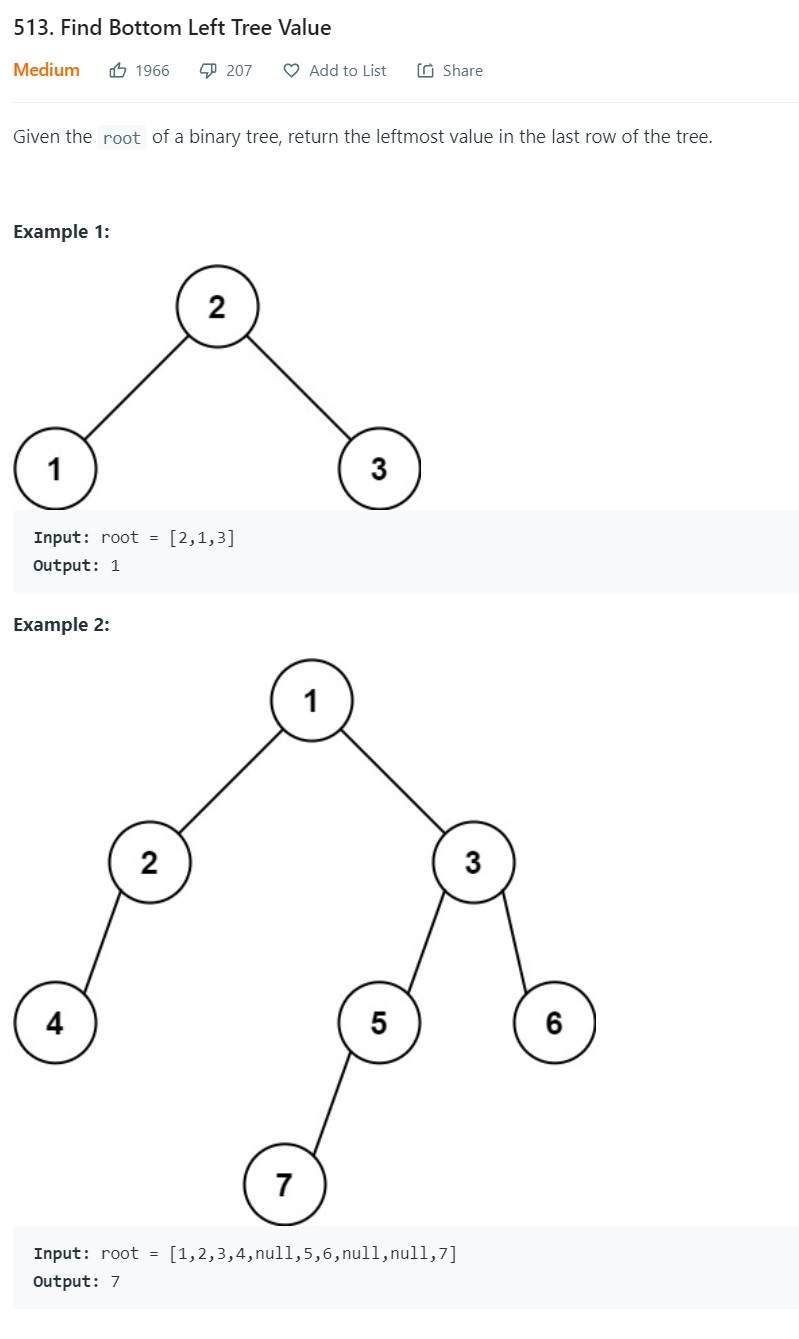

7. Find Bottom Left Tree value - LC 513 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def findBottomLeftValue(self, root: Optional[TreeNode]) -> int:
     # BFS Approach
      q = deque([root])
      while len(q):
	  numnodes = len(q)
	  firstvalue = None
	  for _ in range(numnodes):
	      node = q.popleft()
	      if firstvalue is None:
		  firstvalue = node.val
	      if node.left is not None:
		  q.append(node.left)
	      if node.right is not None:
		  q.append(node.right)
      return firstvalue

      # DFS Approach
      leftmost = []
      def dfs(node, parentdepth):
	mydepth = parentdepth + 1
	if mydepth > len(leftmost):
	    leftmost.append(node.val)

	if node.left is None and node.right is None:
	    pass
	if node.left is not None:
	    dfs(node.left, mydepth)
	if node.right is not None:
	    dfs(node.right, mydepth)

      dfs(root, 0)
      return leftmost[-1]
  • Complexity Analysis

  • Coding Mistakes

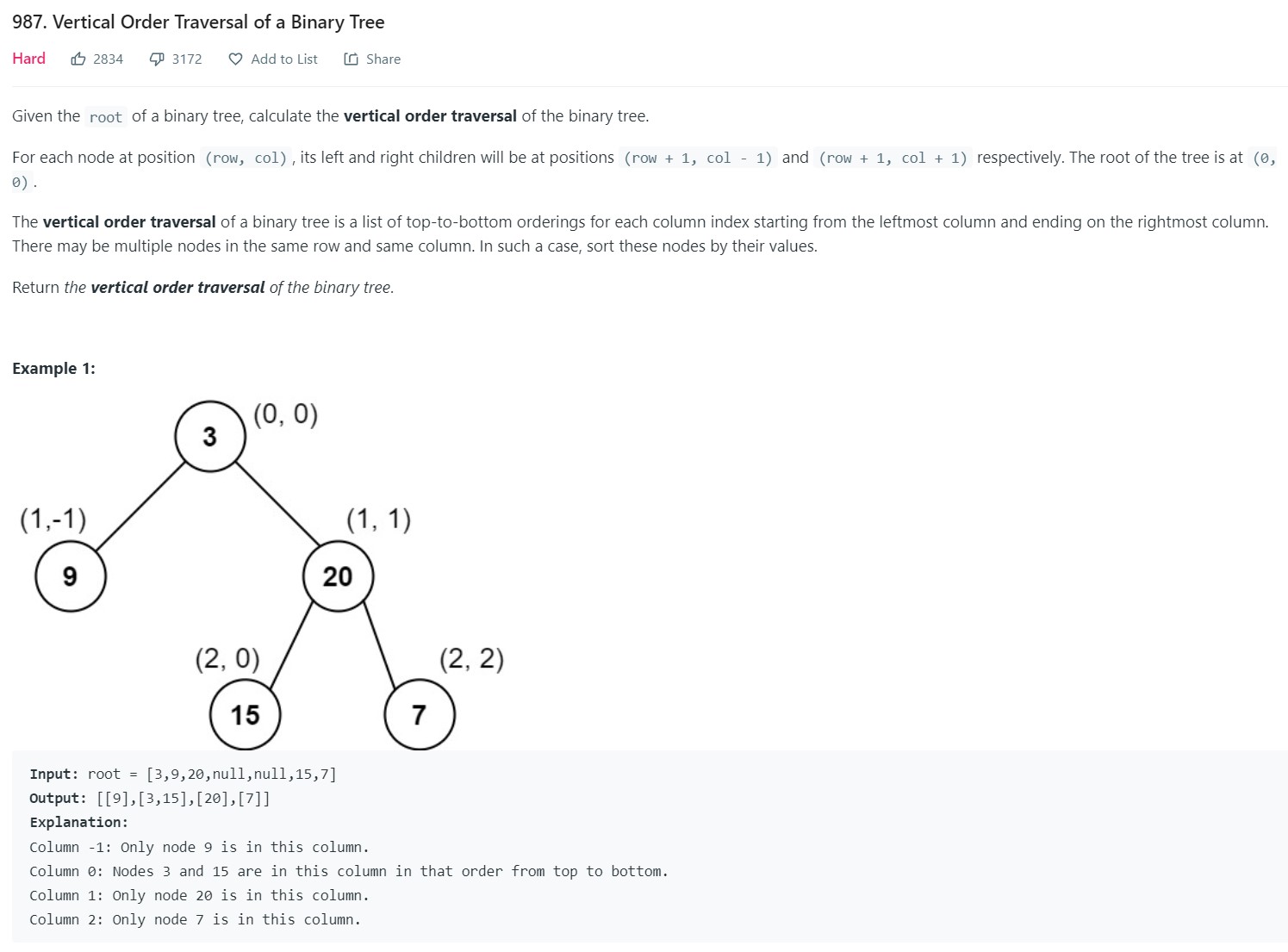

8. Vertical Order Traversal of a Binary Tree - LC 987 - Hard

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def verticalTraversal(self, root: Optional[TreeNode]) -> List[List[int]]:
	result = {}
	if root is None:
	    return []

	def dfs(node, x, y):
	    if x not in result:
		result[x] = {}
	    if y not in result[x]:
		result[x][y] = [node.val]
	    else:
		result[x][y].append(node.val)
	    if node.left is not None:
		dfs(node.left, x-1, y+1)
	    if node.right is not None:
		dfs(node.right, x+1, y+1)
	dfs(root, 0, 0)
	output = []
	for x in sorted(result.keys()):
	    temp = []
	    for y in sorted(result[x].keys()):
		temp.extend(sorted(result[x][y]))
	    output.append(temp)
	return output
  • Complexity Analysis

  • Coding Mistakes

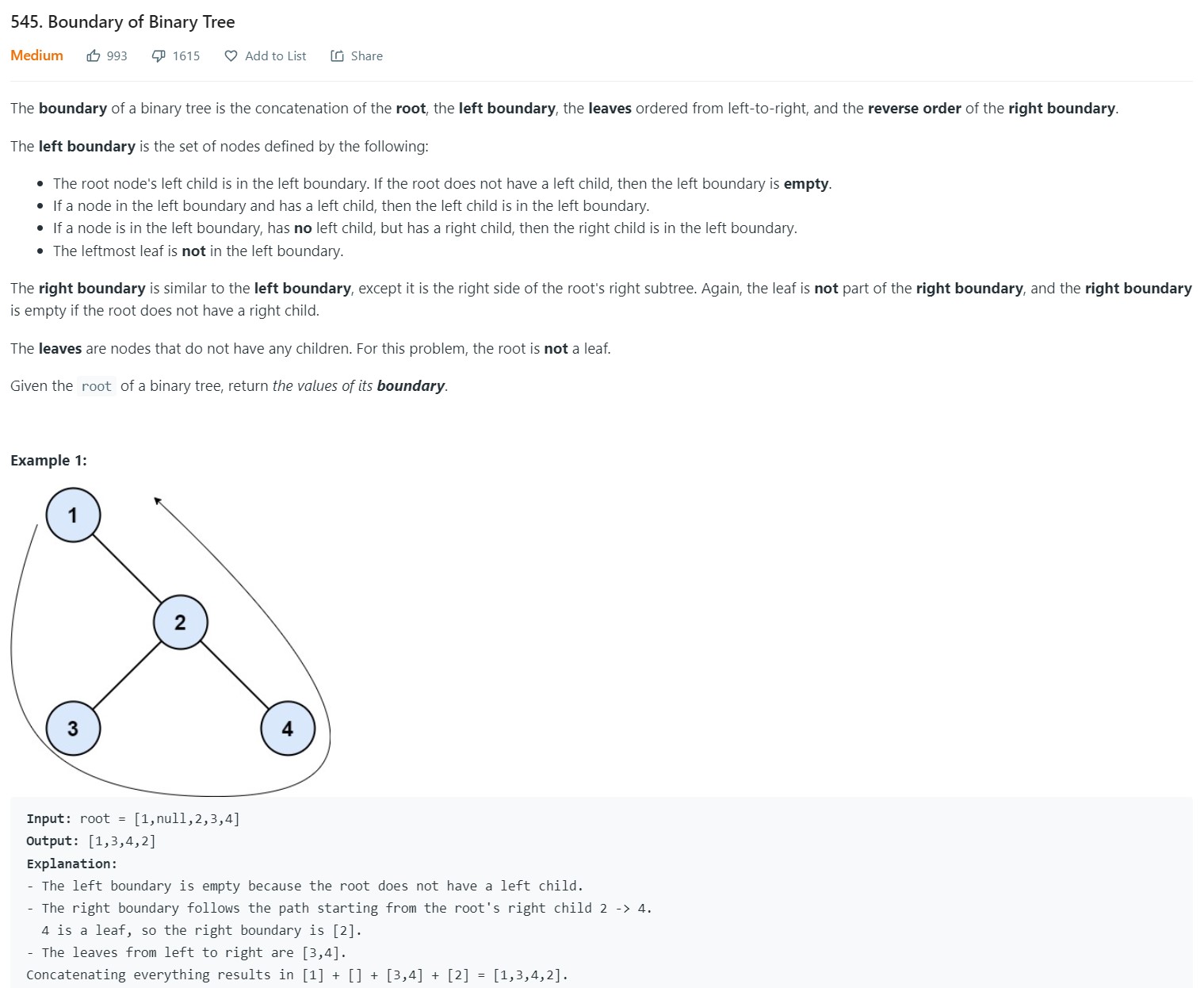

9. Boundary of a Binary Tree - LC 545 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def boundaryOfBinaryTree(self, root: Optional[TreeNode]) -> List[int]:
	if root is None:
	    return []
	if root.left is None and root.right is None:
	    return [root.val]
	leftboundary = [root.val]

	if root.left is not None:
	    cur = root.left
	    while cur is not None:
		leftboundary.append(cur.val)
		if cur.left is not None:
		    cur = cur.left
		else:
		    cur = cur.right
	    leftboundary.pop()

	rightboundary = []
	if root.right is not None:
	    cur = root.right
	    while cur is not None:
		rightboundary.append(cur.val)
		if cur.right is not None:
		    cur = cur.right
		else:
		    cur = cur.left
	    rightboundary.pop()
	    rightboundary.reverse()

	leaves = []
	def dfs(node):
	    if node.left is None and node.right is None:
		leaves.append(node.val)
	    if node.left is not None:
		dfs(node.left)
	    if node.right is not None:
		dfs(node.right)
	dfs(root)
	return leftboundary + leaves + rightboundary
  • Complexity Analysis

  • Coding Mistakes

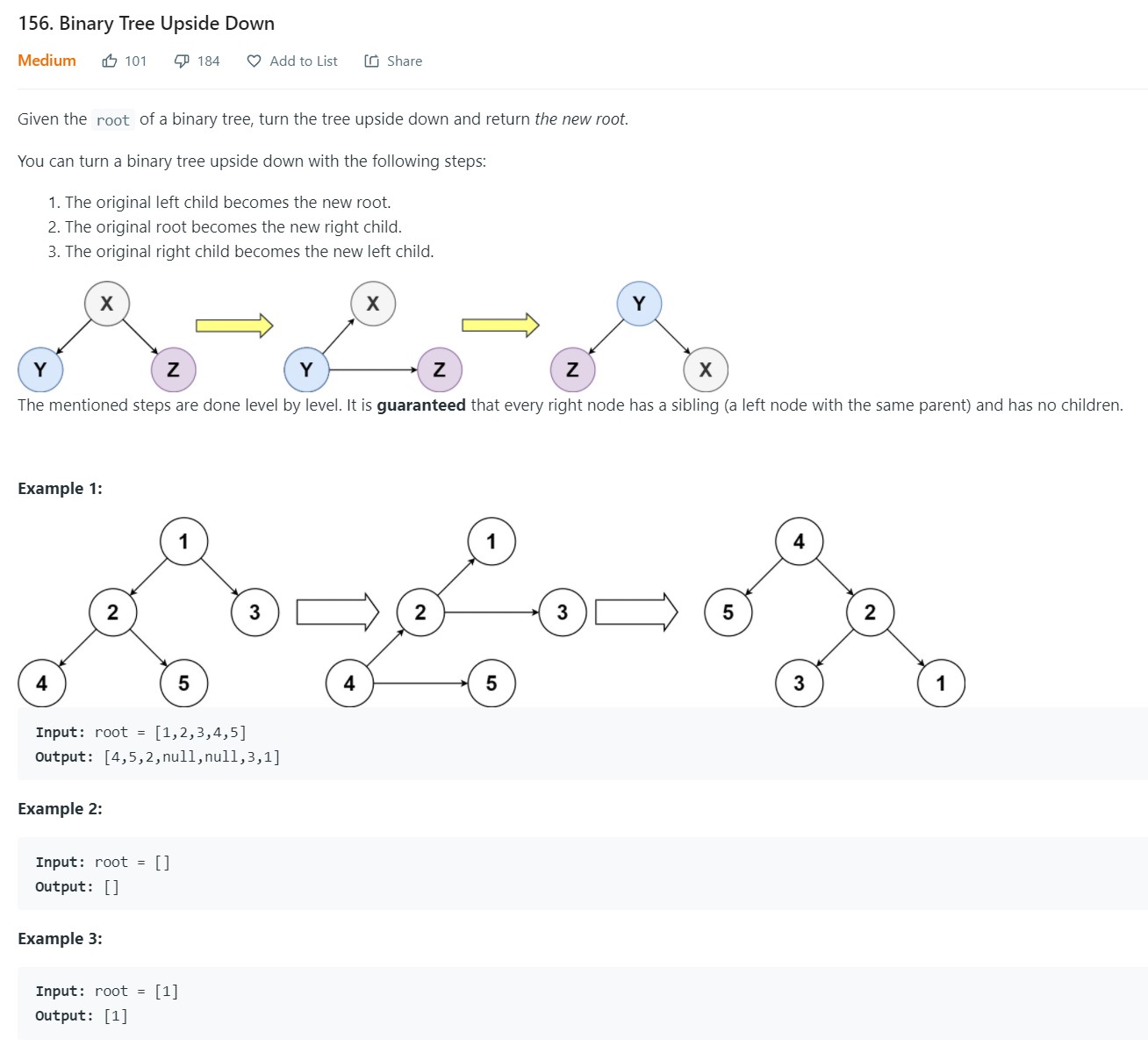

10. Binary Tree Upside Down - LC 156 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def upsideDownBinaryTree(self, root: Optional[TreeNode]) -> Optional[TreeNode]:
	if root is None:
	    return None
	globalroot = [None]

	def dfs(node, parent, rightsibling):
	    oldleft = node.left
	    oldright = node.right
	    node.right = parent
	    node.left = rightsibling

	    if oldleft is None and oldright is None:
		globalroot[0] = node

	    if oldleft is not None:
		dfs(oldleft, node, oldright)

	dfs(root, None, None)
	return globalroot[0]
  • Complexity Analysis

  • Coding Mistakes

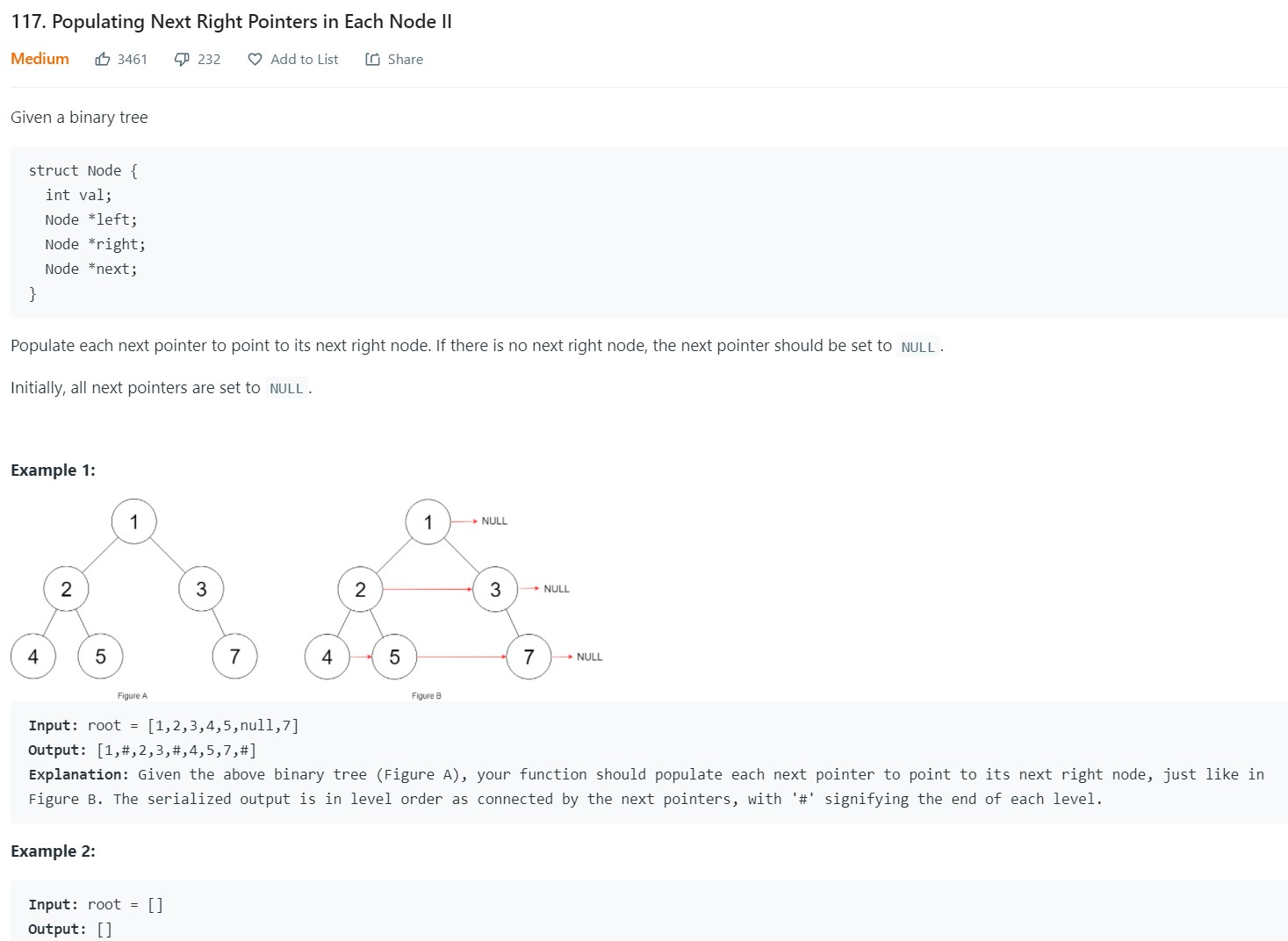

11. Populating Next Right Pointers in each Node II - LC 117 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isUnivalTree(self, root: Optional[TreeNode]) -> bool:
	if root is None:
	    return False
	q = deque([root])
	while len(q):
	    node = q.popleft()
	    if node.left is not None and node.right is not None:
		if node.left.val != node.right.val:
		    return False
		if node.left.val != node.val:
		    return False
	    if node.left is not None:
		q.append(node.left)
		if node.left.val != node.val:
		    return False
	    if node.right is not None:
		q.append(node.right)
		if node.right.val != node.val:
		    return False

	return True
  • Complexity Analysis

  • Coding Mistakes

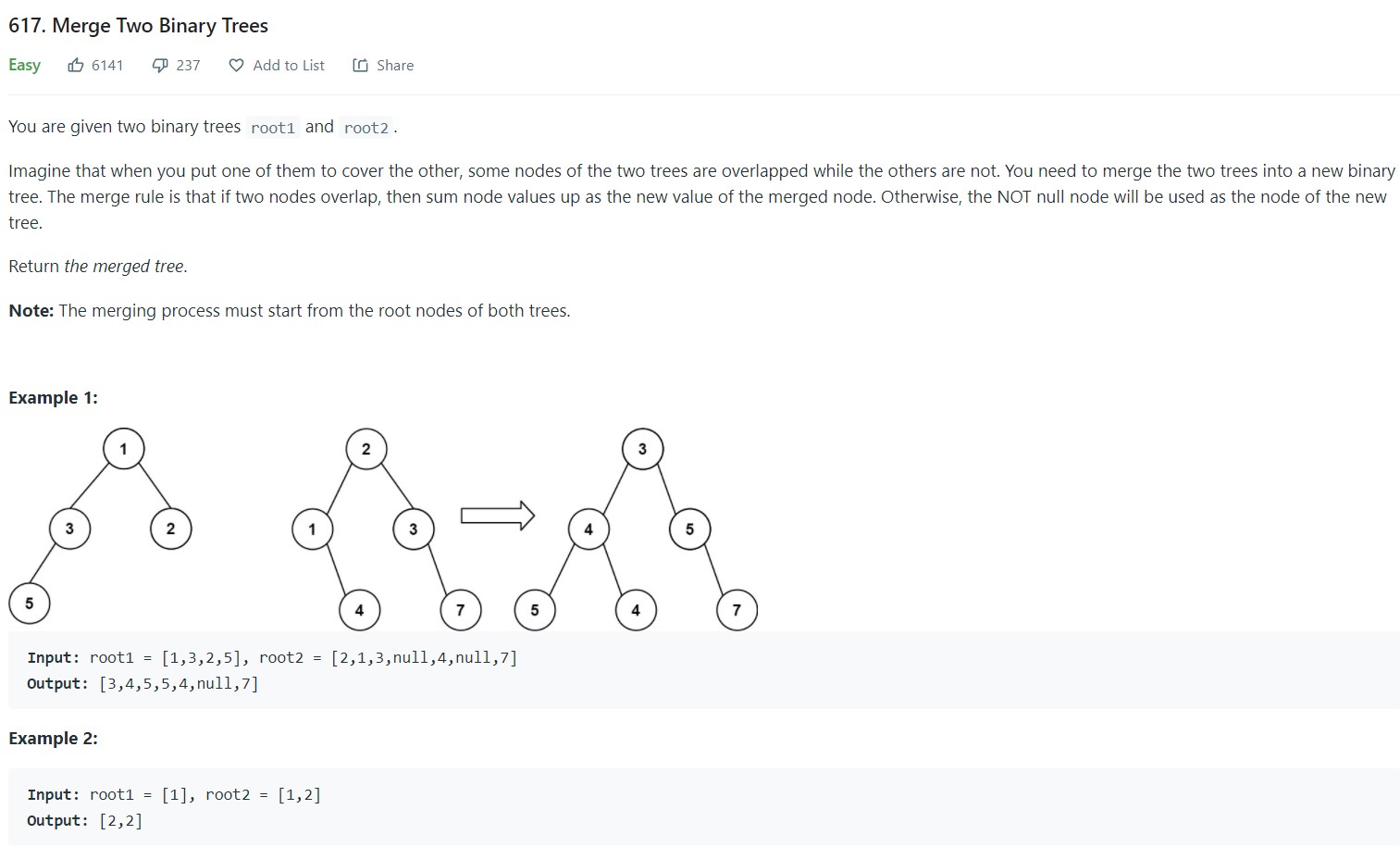

12. Merge Two Binary Trees - 617 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def mergeTrees(self, root1: Optional[TreeNode], root2: Optional[TreeNode]) -> Optional[TreeNode]:
	if root1 is None:
	    return root2
	if root2 is None:
	    return root1

	def dfs(node1, node2):
	    #First node is the base. Second node will merge with it
	    node1.val += node2.val

	    if node1.left is not None:
		if node2.left is not None:
		    dfs(node1.left, node2.left)
		#Nothing to do if second node left is Null
	    else:
		node1.left = node2.left

	    #Do the same for right tree
	    if node1.right is not None:
		if node2.right is not None:
		    dfs(node1.right, node2.right)
	    else:
		node1.right = node2.right
	dfs(root1, root2)
	return root1
  • Complexity Analysis

  • Coding Mistakes

Bottom Up DFS

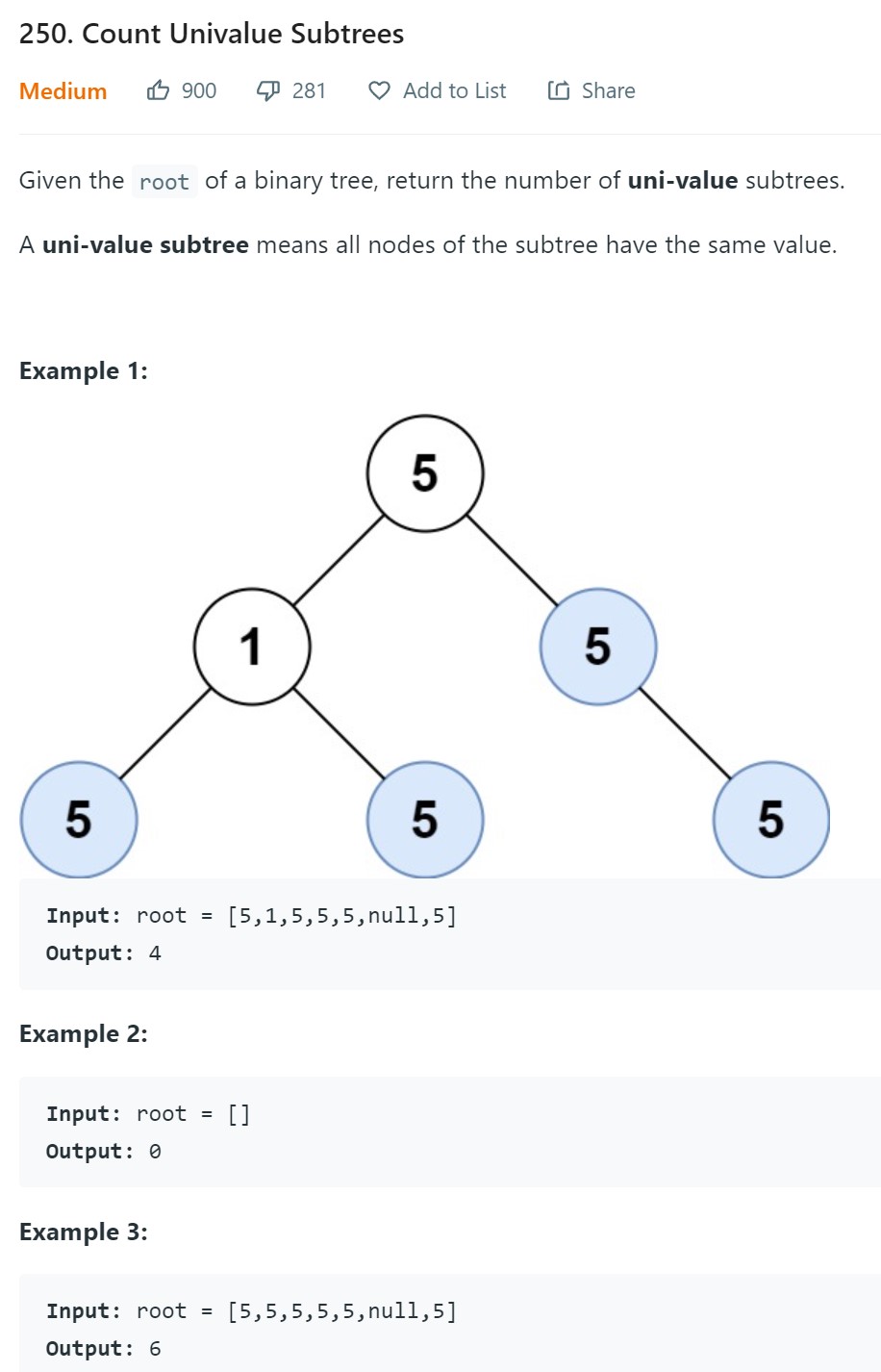

1. Count Univalue Subtrees - LC 250 - Medium

  • Code

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def countUnivalSubtrees(self, root: Optional[TreeNode]) -> int:
	result = [0]

	if root is None:
	    return 0

	def dfs(node):
	    am_i_unival = True

	    #Base Case
	    if node.left is None and node.right is None:
		result[0] += 1
		return True

	    #Recursive Case
	    if node.left is not None:
		is_left_unival = dfs(node.left)
		if not is_left_unival or  (node.val != node.left.val):
		    am_i_unival = False


	    if node.right is not None:
		is_right_unival = dfs(node.right)
		if not is_right_unival or (node.val != node.right.val):
		    am_i_unival = False

	    if am_i_unival == True:
		result[0] += 1
	    return am_i_unival

	dfs(root)
	return result[0]

  • Points to Note:

    • This is bottom dfs problem. There is no useful info coming from the parent node.

    • Each child node has to find out if its left and right subtree are unival and if so, compare its value to the values of the left and right subtree to confirm if the node is unival. Then return it to the parent.

    • This means the sub function has explicit return to the parent.

    • In addition, each node has to update the global box with the incremented count of the univals.

  • Complexity:

    -   Time complexity: In this case, there is additional effort of copying
    the slate to global box.  In a complete balance binary tree, there
    are roughly n/2 workers at leaf level. The worst case could be that
    each and every path is adding up to the target sum. The length of
    the slate could be log N in this case and since there are n/2
    workers it could be n/2 log N or NlogN.

-   Space Complexity: Every single path could be added to the global
    result and there are n/2 paths and each path could be of log N
    long. So the space complexity also is NlogN.

-   Here  it is not the call stack but copying the data to global box is
    the bottleneck.

  • Coding Mistakes

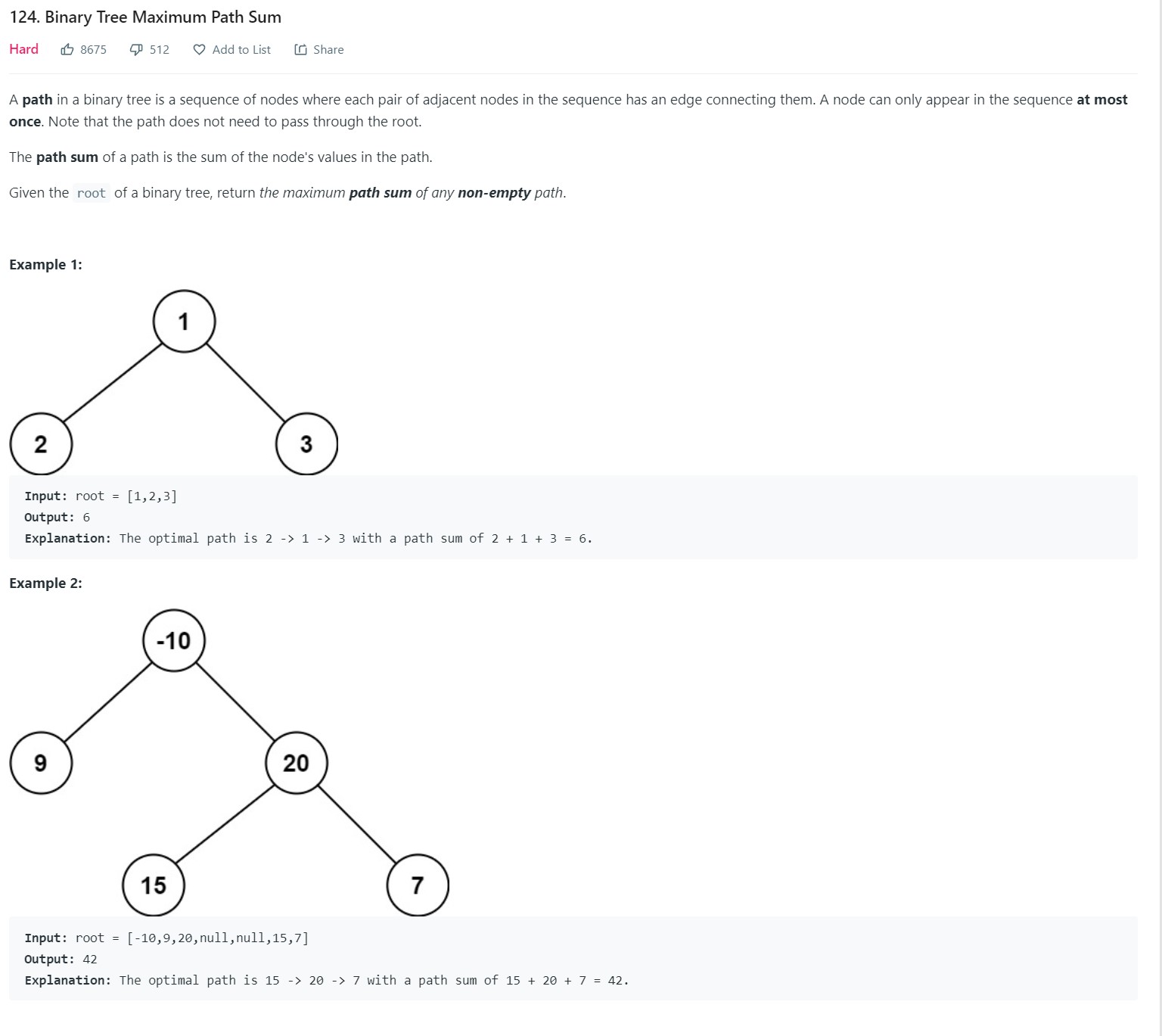

2. Binary Tree Maximum Path Sum - LC 124 - Hard

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def maxPathSum(self, root: Optional[TreeNode]) -> int:
	globalmax = [float("-inf")]
	def dfs(node):
	    mymaxpathsum = node.val
	    mymaxvpathsum = node.val
	    if node.left is None and node.right is None:
		pass
	    if node.left is not None:
		leftmax = dfs(node.left)
		mymaxpathsum = mymaxvpathsum = max(mymaxpathsum, mymaxpathsum + leftmax)

	    if node.right is not None:
		rightmax = dfs(node.right)
		mymaxpathsum = max(mymaxpathsum, node.val + rightmax)
		mymaxvpathsum = max(mymaxvpathsum, node.val + rightmax, mymaxvpathsum + rightmax)
	    if globalmax[0] < mymaxvpathsum:
		globalmax[0] = mymaxvpathsum
	    return mymaxpathsum
	dfs(root)
	return globalmax[0]
  • Complexity Analysis

  • Coding Mistakes

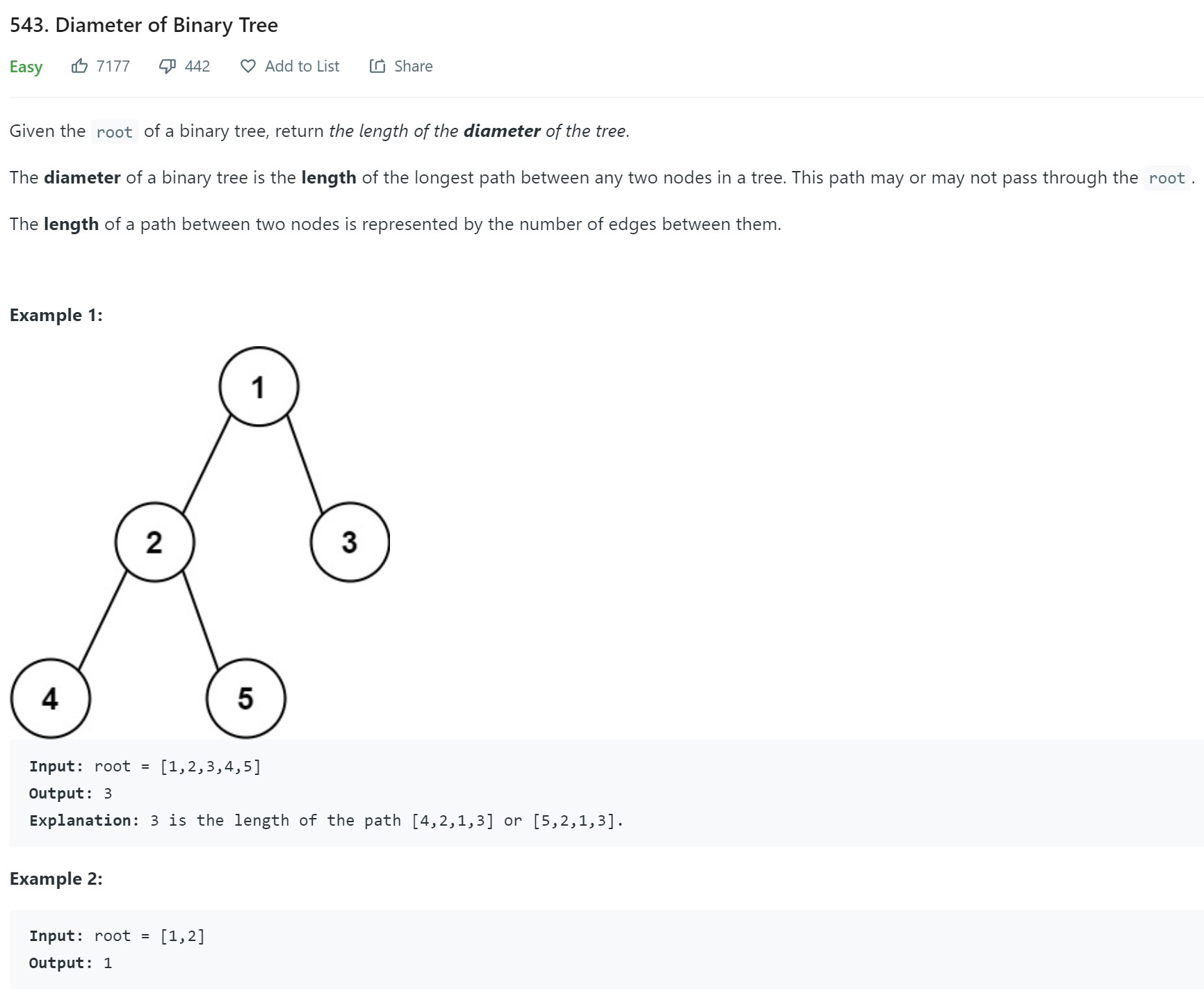

3. Diameter of Binary Tree - LC 543 - Easy

  • Code

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def diameterOfBinaryTree(self, root: Optional[TreeNode]) -> int:

      result = [0] #global box

      def dfs(node):
	  myheight,lh,rh = 0,0,0
	  # Base Case (we are at leaf node)
	  if node.left is None and node.right is None:
	      return 0

	  #recursive case
	  if node.left is not None:
	      lh = dfs(node.left)
	      myheight += lh + 1

	  if node.right is not None:
	      rh = dfs(node.right)
	      myheight += rh + 1

	  result[0] = max(result[0], myheight) # add value to global box

	  return max(lh, rh) + 1 # return max to parent node
      dfs(root)
      return result[0]

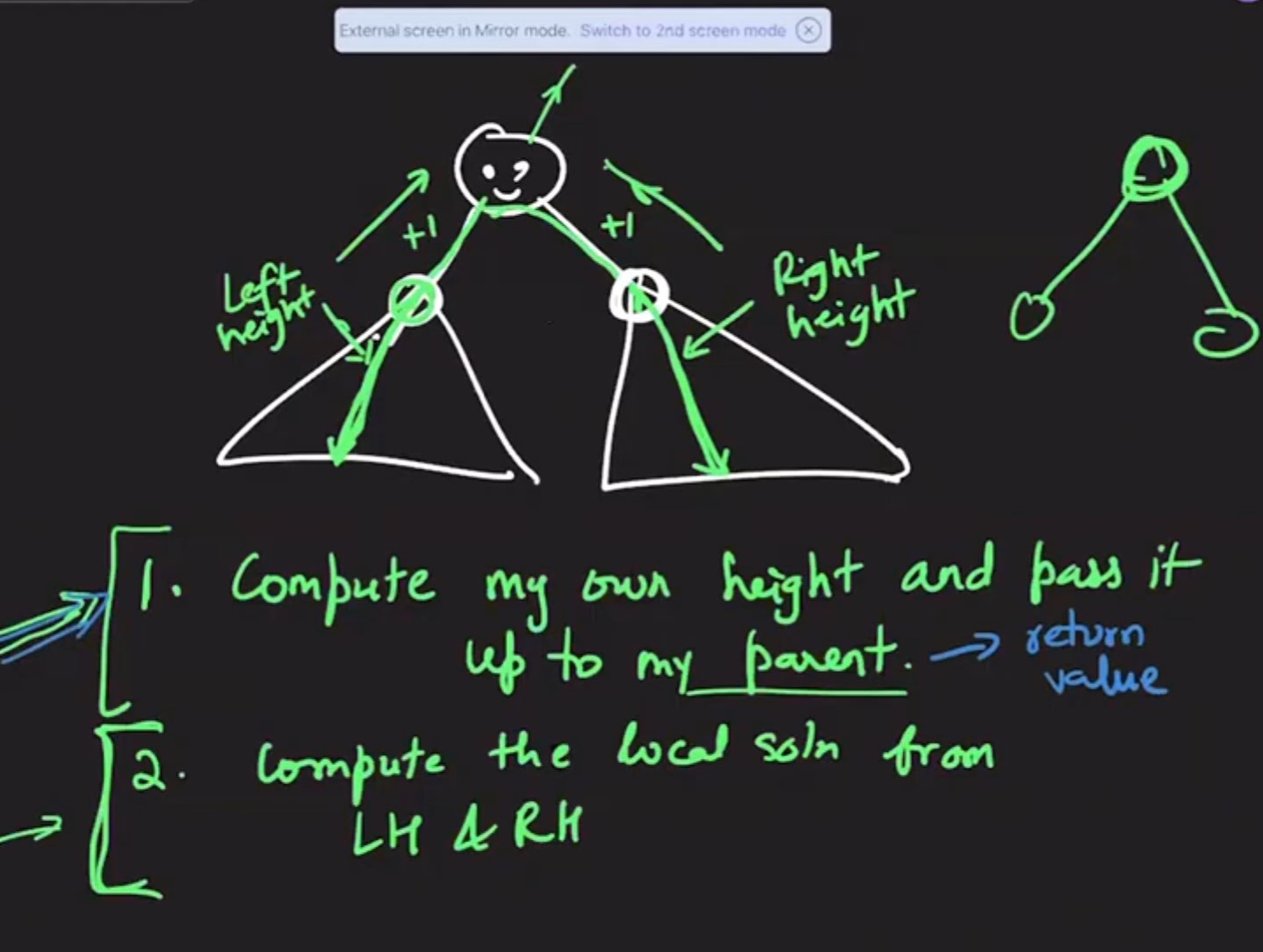

  • Points to Note:

    • Shape of the diameter appears as inverted V shape. Here the manager cannot go on vacation after delegating the work to the subordinate. This means it cannot be top down dfs. So we have to use bottom up dfs.

    • Purely vertical path can be addressed using top down dfs but the paths that have inverted v shape requires different approach than top down dfs.

    • Can we distribute this problem to each node? as a local problem? i.e Each node finds the longest V path thru itself.

    • The global solutoin should be maximum of all local solutions.

    • Each node has to do two things to solve this problem

      • Compute the height at the node level (own height) and pass it to parent node

      • Calculate the local solution for left tree height and right tree height.

      • Code for the above two things can interleave so the safer approach is to write the code for the first subsolution and then interleave the code for the second subsolution.

      • Do not assume both left side and right side tree exits. So we should not add 1 to maximum value for obtoh sides. Check if hte tree exits and then add 1.

      • Remember the Edge Cases:

        • Initialize lh and rh to 0
        • return result[0] and not result
        • check the max and add 1 instead of lh+rh+2 because both trees need not exist

  • Complexity:

    -   Time complexity: In this case, there is additional effort of copying
    the slate to global box.  In a complete balance binary tree, there
    are roughly n/2 workers at leaf level. The worst case could be that
    each and every path is adding up to the target sum. The length of
    the slate could be log N in this case and since there are n/2
    workers it could be n/2 log N or NlogN.

-   Space Complexity: Every single path could be added to the global
    result and there are n/2 paths and each path could be of log N
    long. So the space complexity also is NlogN.

-   Here is it not hte call stack but copying the data to global box is
    the bottleneck.

  • Coding Mistakes

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

    """
For your reference:
class BinaryTreeNode:
    def __init__(self, value):
      self.value = value
      self.left = None
      self.right = None
"""
def binary_tree_diameter(root):
    """
    Args:
     root(BinaryTreeNode_int32)
    Returns:
     int32
    """
    # Write your code here.
    if root is None:
      return 0
    diameter = [0]
    def dfs(node):

      if node.left is None and node.right is None:
	  return 0
      lh, rh = 0,0  #2022-03-04, unpack error as RHS had just one zero
      if node.left is not None:
	  lh = dfs(node.left) + 1

      if node.right is not None:
	  rh = dfs(node.right) + 1

      diameter[0] = max(diameter[0], lh+rh)
      return max(lh,rh) #2022-03-04: I did lh+rh for max function instead of ','
			  #2022-03-04: I also did max(lh + rh) + 1 which was not needed
    dfs(root)
    return diameter[0]

4. Lowest Common Ancestor of a binary tree - LC 236 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, x):
#         self.val = x
#         self.left = None
#         self.right = None

class Solution:
    def lowestCommonAncestor(self, root: 'TreeNode', p: 'TreeNode', q: 'TreeNode') -> 'TreeNode':
	LCA = [None]
	def dfs(node, p, q):
	    pfound, qfound = 0, 0
	    if node is p:
		pfound = True
	    elif node is q:
		qfound = True

	    if node.left is None and node.right is None:
		pass
	    if node.left is not None:
		(pf, qf) = dfs(node.left, p, q)
		pfound = pfound or pf
		qfound = qfound or qf

	    if node.right is not None:
		(pf, qf) = dfs(node.right, p, q)
		pfound = pfound or pf
		qfound = qfound or qf

	    if pfound and qfound and LCA[0] is None:
		LCA[0] = node
	    return (pfound, qfound)
	dfs(root, p, q)
	return LCA[0]

  • Points to Note:

    • LCA could be one of the nodes if it is ancestor of the other
    • We cannot solve this using BFS or top down DFS as we need info multiple level down. SO this is bottom up dfs.
    • With the cousin’s problem, all we needed was to see if the previous level or parents belonged to same level. Here we need to peek down multiple levels.
    • What info. do I need from my child? If P exists or Q exists in its subtree? This info. helps me to decide if I am common ancestor for P and Q. This become my own return values to my parent.
    • We need to find the lowest ancestor. The very first time both of the boolean are returned true, it is the lowest ancestor.

5. Longest Unival Path - LC 687 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isUnivalTree(self, root: Optional[TreeNode]) -> bool:
	if root is None:
	    return False
	q = deque([root])
	while len(q):
	    node = q.popleft()
	    if node.left is not None and node.right is not None:
		if node.left.val != node.right.val:
		    return False
		if node.left.val != node.val:
		    return False
	    if node.left is not None:
		q.append(node.left)
		if node.left.val != node.val:
		    return False
	    if node.right is not None:
		q.append(node.right)
		if node.right.val != node.val:
		    return False

	return True
  • Complexity Analysis

  • Coding Mistakes

6. Balanced Binary Tree - LC 110 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isBalanced(self, root: Optional[TreeNode]) -> bool:
	balanced = [True]
	if root is None:
	    return True
	def dfs(node):
	    myheight = 0

	    leftht = rightht= 0

	    if node.left is not None:
		leftht = 1 + dfs(node.left)
	    if node.right is not None:
		rightht = 1 + dfs(node.right)

	    myheight = max(leftht, rightht)
	    if abs(leftht - rightht) > 1:
		balanced[0] = False
	    return myheight
	dfs(root)
	return balanced[0]

  • Points to Note

7. Binary Tree Tilt - 563 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def findTilt(self, root: Optional[TreeNode]) -> int:
	if root is None:
	    return 0
	globaltilt = [0]
	def dfs(node):
	    if node.left is None and node.right is None:
		return node.val
	    leftsum, rightsum = 0,0
	    if node.left is not None:
		leftsum = dfs(node.left)

	    if node.right is not None:
		rightsum = dfs(node.right)

	    mysum = node.val + leftsum + rightsum
	    mytilt = abs(leftsum - rightsum)

	    globaltilt[0] += mytilt

	    return mysum
	dfs(root)
	return globaltilt[0]
  • Complexity Analysis

  • Coding Mistakes

8. Flatten Binary tree to a linked list - 114 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def flatten(self, root: Optional[TreeNode]) -> None:
	"""
	Do not return anything, modify root in-place instead.
	"""
	if root is None:
	    return None
	sentinel = TreeNode()

	#Local problem: Connect each node's preorder predecessor to it.
	def dfs(node, pred):
	    #Preorder predecessor needs to be updated here before the recursive call

	    pred.left = node
	    pred = node
	    #Base Case, Leaf Node:
	    if node.left is None and node.right is None:

		return pred
	    #Recursive Case: Internal Node

	    if node.left is not None:
		pred = dfs(node.left, pred)
	    if node.right is not None:
		pred = dfs(node.right, pred)
	    return pred
	dfs(root, sentinel)
	head = sentinel.left

	#Now Switch all left pointers to become right pointers
	cur = head
	while cur:
	    cur.right = cur.left
	    cur.left = None
	    cur = cur.right
	return head
  • Complexity Analysis

  • Coding Mistakes

Tree Construction

1. Construct Binary Tree from Inorder and Postorder traversal - 106 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isUnivalTree(self, root: Optional[TreeNode]) -> bool:
	if root is None:
	    return False
	q = deque([root])
	while len(q):
	    node = q.popleft()
	    if node.left is not None and node.right is not None:
		if node.left.val != node.right.val:
		    return False
		if node.left.val != node.val:
		    return False
	    if node.left is not None:
		q.append(node.left)
		if node.left.val != node.val:
		    return False
	    if node.right is not None:
		q.append(node.right)
		if node.right.val != node.val:
		    return False

	return True
  • Complexity Analysis

  • Coding Mistakes

2. Construct binary tree from pre order and in order traversal - LC 105 - Medium

  • Code

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def buildTree(self, preorder: List[int], inorder: List[int]) -> Optional[TreeNode]:
      ino_map = {}
      for i in range(len(inorder)):
	  ino_map[inorder[i]] = i

      def helper(A1, start1, end1, A2, start2, end2):
	  #return the subtree root of the binary tree constructed from the preorder subarray
	  #A1[start1..end1] and inorder subarray A2[start2..end2]

	  #Base Case
	  if start1 > end1:
	      return None

	  if start1 == end1:
	      return TreeNode(A1[start1])

	  #At this point we know that preorder subarray is more than 1.

	  #Recursive Case
	  #The first value in the preorder subarray is the root of the subtree
	  rootval = A1[start1]

	  #Find the index of this value in the inorder subarray.
	  #It is guaranteed to be present in the inorder subarray
	  rootindex = ino_map[rootval]

	  #Everything to its left is the left subtree and everything to its right is the right subtree
	  numleft = rootindex - start2
	  numright = end2 - rootindex
	  subtreeroot = TreeNode(rootval)
	  subtreeroot.left = helper(A1, start1+1, start1+numleft, A2, start2, rootindex-1)
	  subtreeroot.right = helper(A1, start1+numleft+1, end1, A2, rootindex+1, end2)

	  return subtreeroot

      root = helper(preorder, 0, len(preorder)-1, inorder, 0, len(inorder)-1)
      return root

  • Points to Note:

    • Why is the assumption of ’no duplicates’ important? This is because with duplicate values, there is no more unique binary tree. There could be multiple different trees with same preorder and inorder sequence. It is not possible to reconstruct the original binary tree.

    So given preorder and inorder, how do we proceed?

    • First value is the root node value.

    • To know where the boundary lies between left and right, we look at where the root node value lies in inorder tree. The numbers that lie before root value in inorder array belongs to left subtree and the rest lies in right subtree.

    • The same numbers lie after root value in the preorder array. The order may not be the same.

    • The numleft (the numbers lying to left of root value in the inorder sequence is preorder left and the numbers lying on the right of root value in the inorder sequence is the preorder right

      • Calculate the root index

  • Complexity:

    -   Time complexity:  Each worker creating root node, looking up hashindex and divide the subproblem. O(N)
-   Space Complexity:
    -   Explicit: O(N) for hashmap and O(N) for output tree
    -   Implicit: O(N) Since the tree may not be balanced it is not O(logN) but O(N)

  • Coding Mistakes

3. Serialize and Deserialize binary tree - 297 - Hard

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isUnivalTree(self, root: Optional[TreeNode]) -> bool:
	if root is None:
	    return False
	q = deque([root])
	while len(q):
	    node = q.popleft()
	    if node.left is not None and node.right is not None:
		if node.left.val != node.right.val:
		    return False
		if node.left.val != node.val:
		    return False
	    if node.left is not None:
		q.append(node.left)
		if node.left.val != node.val:
		    return False
	    if node.right is not None:
		q.append(node.right)
		if node.right.val != node.val:
		    return False

	return True
  • Complexity Analysis

  • Coding Mistakes

Binary Search Tree Problems

Tree Construction

1. Convert sorted array to binary search tree - LC 108 - Easy

  • Code

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def sortedArrayToBST(self, nums: List[int]) -> Optional[TreeNode]:

	def dfs(A, start, end):
	    #Base Case
	    if start > end:
		return None

	    #Recursive Case

	    mid = start + ((end - start) // 2)
	    root = TreeNode(val= nums[mid])

	    left = dfs(A, start, mid - 1)
	    right = dfs(A, mid+1, end)
	    root.left = left
	    root.right = right
	    return root
	root = dfs(nums, 0, len(nums) - 1)
	return root
  • Points to Note:

  • Complexity:

    • Time complexity: O(N)

      • Every worker is creating a new node and contributing to the tree. The worker takes constant time to do this. There are close to n workers resulting in \(O(n)\)

    • Space Complexity: Each worker is creating a node. Since tree is balanced, every path is bounded by O(logN) The implicit stack space is height of the tree is O(logN) The explicit space used for the output is O(N)

2. Convert sorted list to BST - 109 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isUnivalTree(self, root: Optional[TreeNode]) -> bool:
	if root is None:
	    return False
	q = deque([root])
	while len(q):
	    node = q.popleft()
	    if node.left is not None and node.right is not None:
		if node.left.val != node.right.val:
		    return False
		if node.left.val != node.val:
		    return False
	    if node.left is not None:
		q.append(node.left)
		if node.left.val != node.val:
		    return False
	    if node.right is not None:
		q.append(node.right)
		if node.right.val != node.val:
		    return False

	return True
  • Complexity Analysis

  • Coding Mistakes

3. Convert BST To Greater Tree - 538 - Medium

4. Serialize and Deserialize BST - 449 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isUnivalTree(self, root: Optional[TreeNode]) -> bool:
	if root is None:
	    return False
	q = deque([root])
	while len(q):
	    node = q.popleft()
	    if node.left is not None and node.right is not None:
		if node.left.val != node.right.val:
		    return False
		if node.left.val != node.val:
		    return False
	    if node.left is not None:
		q.append(node.left)
		if node.left.val != node.val:
		    return False
	    if node.right is not None:
		q.append(node.right)
		if node.right.val != node.val:
		    return False

	return True
  • Complexity Analysis

  • Coding Mistakes

5. Constrct BST from preorder traversal - 1008 - Medium

6. Merge Two BSTs to sorted lists [IK problem]

7. Merge two BSTs [EPI problem]

Bottom Up DFS

1. Convert BST to sorted doubly linked list - 426 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

    """
# Definition for a Node.
class Node:
    def __init__(self, val, left=None, right=None):
	self.val = val
	self.left = left
	self.right = right
"""

class Solution:
    def treeToDoublyList(self, root: 'Optional[Node]') -> 'Optional[Node]':
	sentinel = Node('stub')
	prev = [sentinel]
	if root is None:
	    return None
	def dfs(node):
	    if node.left is None and node.right is None:
		prev[0].right = node
		node.left = prev[0]
		prev[0] = node
		return
	    if node.left is not None:
		dfs(node.left)
	    prev[0].right = node
	    node.left = prev[0]
	    prev[0] = node

	    if node.right is not None:
		dfs(node.right)
	dfs(root)
	head = sentinel.right
	head.left = prev[0]
	prev[0].right = head
	return head

2. Largest BST Subtree - LC 333 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def largestBSTSubtree(self, root: Optional[TreeNode]) -> int:
	if root is None:
	    return 0

	'''
	Global Problem: Find the largest BST Subtree
	#Local (Per-node) Problem:  Am I a BST? If so, then how many nodes do I have?
	#Local to Global:  Global solution is the max of all the local solutions which are the BSTs
	# To calculate local solution:
	  - Each node has to figure out if it is a BST and # of nodes in its subtree
	  - For this, it needs to know if its left and right subtrees are BSTs.
	  - and the largest  element in the left subtree and smallest element in its right subtree
	# This means, each node has to return:
	   1. AM I BST True or False
	   2. largest element in its left subtree
	   3. smallest element in its right subtree
	   4. Its total size

	'''

	globalsize = [0]

	def dfs(node):
	    mysize = 1
	    mysmallest = mylargest = node.val
	    iambst = True

	    #Base Case: Leaf node
	    if node.left is None and node.right is None:
		pass

	    #Recursive Case:
	    if node.left is not None:
		(size, smallest, largest, isbst) = dfs(node.left)
		mysize += size
		mysmallest = min(mysmallest, smallest)
		mylargest = max(mylargest, largest)
		if  not isbst or largest >= node.val:
		    iambst = False

	    if node.right is not None:
		(size, smallest, largest, isbst) = dfs(node.right)
		mysize += size
		mysmallest = min(mysmallest, smallest)
		mylargest = max(mylargest, largest)
		if not isbst or node.val >= smallest:
		    iambst = False

	    if iambst and mysize > globalsize[0]:
		globalsize[0] = mysize
	    return(mysize, mysmallest, mylargest, iambst)
	dfs(root)
	return globalsize[0]

3. Kth smallest element in a BST - 230 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

    class Solution:
    def kthSmallest(self, root: Optional[TreeNode], k: int) -> int:
      """
      :type root: TreeNode
      :type k: int
      :rtype: int
      """
      stack = []

      while True:
	    while root:
	      stack.append(root)
	      root = root.left
	  root = stack.pop()
	  k -= 1
	  if not k:
	      return root.val
	  root = root.right

  • Points to Note:

    • To solve the problem, one could use the property of BST : inorder traversal of BST is an array sorted in the ascending order.

  • Complexity:

    • Time Complexity: \(O(N)\)
    • Space Complexity: \(O(N)\) The height of the tree H which in the worst case is \(O(N)\)

4. Binary Search Tree Iterator - 173 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

    # Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
class Solution:
    def isUnivalTree(self, root: Optional[TreeNode]) -> bool:
	if root is None:
	    return False
	q = deque([root])
	while len(q):
	    node = q.popleft()
	    if node.left is not None and node.right is not None:
		if node.left.val != node.right.val:
		    return False
		if node.left.val != node.val:
		    return False
	    if node.left is not None:
		q.append(node.left)
		if node.left.val != node.val:
		    return False
	    if node.right is not None:
		q.append(node.right)
		if node.right.val != node.val:
		    return False

	return True
  • Complexity Analysis

  • Coding Mistakes

5. Increasing Order Search Tree - 897 - Easy

6. Recover Binary Search Tree - 99 - Medium

7. Validate Binary Search Tree - LC 98 - Medium

  • Code

    def isValidBST(self, root):
  #Global Problem: Determine if the entire tree is BST
  #Local (Per node Problem): Determine if the subtree rooted at each node is BST
  #Local -> Global: All local problems must return True for global solution to be true
  #So if any local solution is false, global will become False
  isbst  = [True]
  def dfs(node):
    '''
    - A node will determine if it is BST by looking at its left and
    right subtrees.
    - The largest value in the left subtree should be
    smaller than the root value.
    - The smallest value in the right subtree should be larger than the root value.
    - Both subtrees should be BST
    - This means each node should return (smallest, largest and
    whether am_i_bst) values in its subtree to its parent.
    - The reason  all three values are returned even though we do not require all of
    them from each side of the subtree is because we write generalized
    recursive function and not easy to differentiate if the node belongs
    to left or right subtree.

    '''
    iambst = True
    smallest, largest = node.val, node.val

    #Base Case: Leaf NOde
    if node.left is None and node.right is None:
      pass

    #Recursive Case: Internal Node
    if node.left is not None:
      (s, l, b) = dfs(node.left)
      smallest = min(smallest, s)
      largest  = max(largest, l)
      if not b or l >= node.val:
	iambst = False

    if node.right is not None:
      (s, l, b) = dfs(node.right)
      smallest = min(smallest, s)
      largest = max(largest, l)
      if not b or node.val >= s:
       iambst = False

    if iambst == False:
       isbst[0] = False
     return(smallest, largest, iambst)
 dfs(root)
 return isbst[0] # or (S, L, B) = dfs(root); return B

  • Points to Note:

    • This is a decision problem.

    • Global problem: Determine whether overall tree is BST

    • Local problem: Check whether the sub tree rooted at its node is BST or not.

    • How does the local answer affect the global answer? If the local answer is no, we can right away return False for the global problem.

    • How do we determine the sub tree rooted at a node is BST or not? Info I need:

      • My left sub tree should tell me the largest value from left sub tree. This will be my predecessor.
      • From right sub tree, I need the smallest value. This will be my successor
      • Whether each side of the subtree is bst by itself or not.
      • The general strategy every node should pass is both the smallest and the largest value. Otherwise some node is not going to get one or the other value.
      • The second part is to solve the local problem. The current node’s value should have strict less than relationship with right subtree and strict greater than relationship with left subtree.
      • Each node is going to return largest and smallest value though we need only one of them from each side. Omkar says Leetcode defines the local problem this way.
  • Complexity:

N-Aray Tree Problems

1. Clone N Aray tree - 1490 - Medium

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

    class Solution:
    def cloneTree(self, root: 'Node') -> 'Node':
	if root is None:
	    return None
	root_clone = Node(val=root.val)

	q = deque([(root, root_clone)])

	while len(q):
	    numnodes = len(q)
	    for _ in range(numnodes):
		(node, node_clone) = q.popleft()
		for child in node.children:
		    if child is not None:
			node = Node(val=child.val)
			node_clone.children.append(node)
			q.append((child, node))
	return root_clone

  • Points to Note:

    • Keep the root of both the trees in the queue
    • Pop them together then only we will see the tree has children. Once you see a node has children, create newly created nodes as children for the new tree. Add them together to the queue.
    • Insert these as tuple to the queue.

  • Complexity:

    • Time Complexity: \(O(N)\)
    • Space Complexity: \(O(N)\)

2. N-ary Tree Level Order Traversal - LC 429 - Medium

  • Code


class Solution:
    def levelOrder(self, root: 'Node') -> List[List[int]]:

	result = []
	if root is None:
	    return []
	q = collections.deque([root])

	while len(q):
	    temp = []
	    numnodes = len(q)
	    for _ in range(numnodes):
		node = q.popleft()
		temp.append(node.val)
		for i in node.children:
		    if i is not None:
			q.append(i)
	    result.append(temp)
	return result

  • Points to Note

    • It may look like we have three inner loops but still time complexity is O(N)
    • For level order traversal, if we need to get a list of children at each level, we need a loop for every level and another loop to add children of each level.
    • The number of nodes related to edges is edges -1 (because root has no unpaired node and every other edge is paired) applies for binary and n-aray trees
  • Complexity Analysis

  • Coding Mistakes

    2022-02-28: 👏 😎 ❤️

    • No mistakes. Successful submission in 02 minutes 04 seconds

3. Maximum Depth of N-ary Tree - LC 559 - Easy

  • Code

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

    """
# Definition for a Node.
class Node:
    def __init__(self, val=None, children=None):
	self.val = val
	self.children = children
"""

class Solution:
    def maxDepth(self, root: 'Node') -> int:
	if root is None:
	    return 0

	q = deque([root])
	max_depth = 0
	while len(q):
	    numnodes = len(q)
	    max_depth += 1

	    for _ in range(numnodes):
		node = q.popleft()
		for child in node.children:
		    q.append(child)
	return max_depth

  • Complexity Analysis

    * Coding Mistakes

References:

Omkar Slides:

trees BFS DFS
Previous
Next

Last updated on Feb 22, 2020

Edit this page
